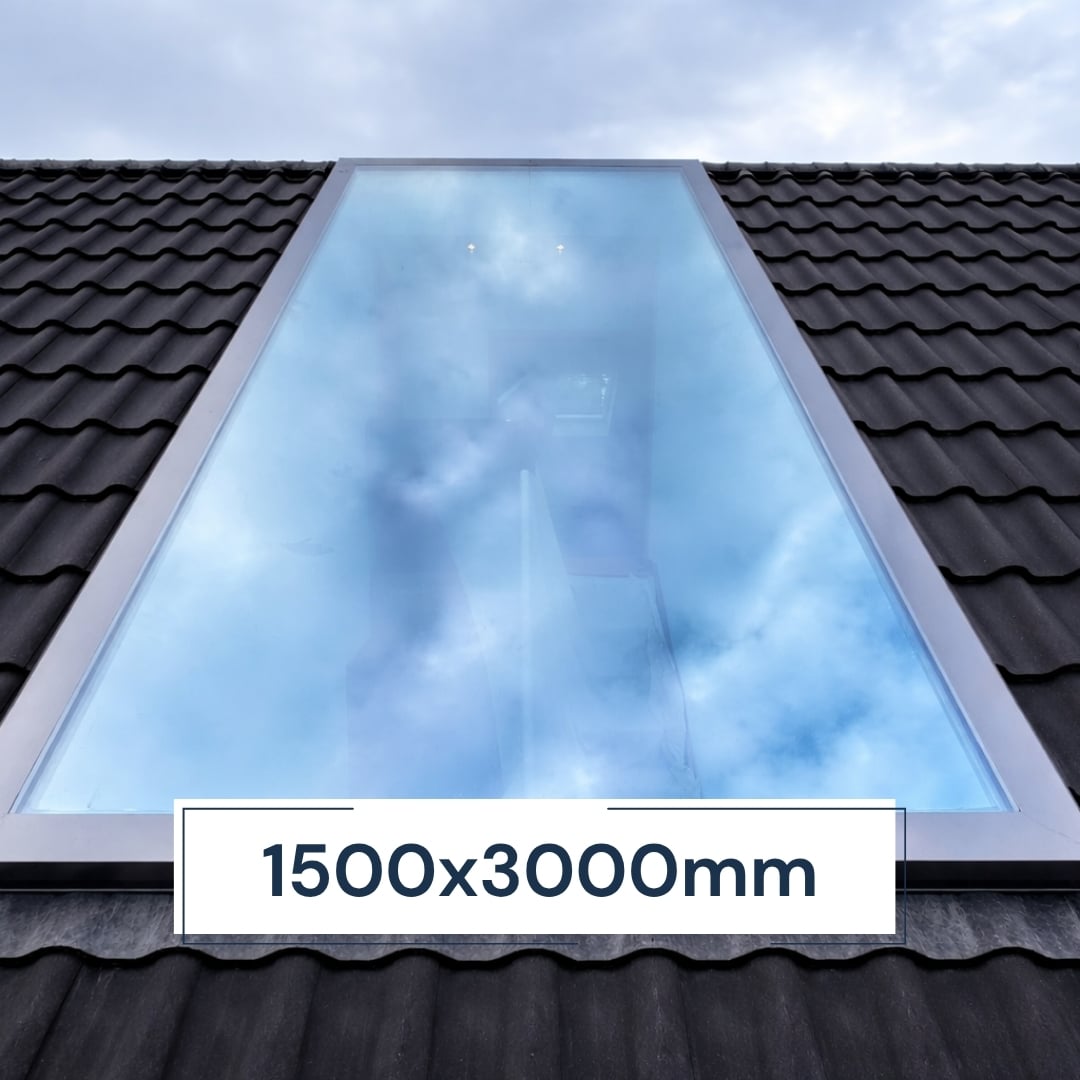

Frameless Skylight for Pitched Roof 1500 x 3000 mm

Pitched Roof Skylight / Rooflight 1500 x 3000 mm

Transform your living or working space with the Rooflight Factory Pitched Roof Skylight — a premium frameless rooflight designed to maximise natural light and enhance modern interiors. Ideal for pitched and tiled roofs, this sleek, high-performance skylight offers exceptional energy efficiency and a refined aesthetic that elevates any property.

Contemporary Frameless Design

Crafted to the highest standards, the Rooflight Factory Pitched Roof Skylight features a completely frameless design both internally and externally, creating a seamless, unobstructed view of the sky. The minimalist appearance complements both contemporary and traditional architecture, while the precision-engineered structure ensures long-lasting durability. Installation is straightforward with lead flashing cut on-site, suitable for all roof types.

High-Performance Glazing

This non-opening rooflight combines advanced materials with cutting-edge technology to deliver outstanding insulation and solar protection. Its triple-glazed design maintains excellent temperature regulation and clarity, ensuring comfort and energy savings throughout the year.

• Glazing Type: Triple Glazed
• Internal Glass Size (Quoted): 1500 x 3000 mm
• External Glass Size: 1700 x 3200 mm
• Spacer Type: 15 mm Black Warm Edge
• Air Gap: 16 mm, 90% Argon Filled
• Top Glass Pane: 8 mm Planibel Clearlite / Thermally toughened glass BS EN 12150
• Middle Glass Pane: 6 mm iplus Thermally toughened glass with Low-E coating EN 12150
• Bottom Glass Pane: 8 mm Planibel Clearlite / Thermally toughened glass BS EN 12150
• U Value: 0.9 W/m²K
• G Value: 58%
• Net Weight: 266.3 kg
• Self-Cleaning Glass: Yes
• UV Protected: Yes
• Tint: Clear

Note: For skylights wider than one metre, it is recommended that the bottom pane of glass be thermally toughened for added strength and structural stability.

Safety & Compliance

Every Rooflight Factory skylight meets British Standards and Building Regulations, ensuring full compliance and safety. It is CE marked, confirming conformity with EU product directives. With a maximum installation pitch of 45 degrees, this rooflight offers flexibility for various architectural and design applications.

Installation Recommendations

• Internal Dimensions: The top glass pane includes a black border, extending the external dimensions by approximately 200 mm in each direction.
• Creating the Opening: Allow an extra 10 mm internally (from upstand to upstand) for an accurate fit. For example, a 600 x 900 mm skylight requires a 610 x 910 mm opening.
• Upstand Construction: Construct the upstand (timber frame) using 2×1 or 2×2-inch timber for a secure and stable base.
• Foam Rope & Sealant: Install foam rope above the internal support baton to balance weight distribution and reduce stress on the glass. Apply Dowsil 791 black sealant to create a watertight perimeter. Avoid acrylic sealants, as they are not compatible.
• Flashing: Ensure flashing is applied around the entire upstand to seal the unit to your roof tiles. Flashing rolls are supplied in 7.5-metre lengths — one roll typically covers a skylight with a 6-metre perimeter (e.g. a 1000 x 2000 mm model).

Customisation Options

At Rooflight Factory, we understand that every project is unique. That’s why we offer custom-size skylight calculators for both standard and oversized frameless units, allowing you to tailor your skylight to your exact specifications and achieve a flawless finish.

Why Choose Rooflight Factory?

• Best Price Guarantee
• 20-Year Warranty
• Secure Payment Protection
• Self-Cleaning, Clear-Tint, UV-Protected Glass
• Free Delivery within London (M25)
• All Panels Made from Safety Toughened and Laminated Glass
• Manufactured in the EU
• London-Based Stock for Fast Dispatch
• Quick and Easy Installation
• Step-by-Step Installation Guide Included

Bring elegance, efficiency, and lasting quality to your property with the Rooflight Factory Pitched Roof Skylight. Combining sleek design, outstanding performance, and durable construction, it’s the perfect solution for modern homes that value natural light and contemporary style.
