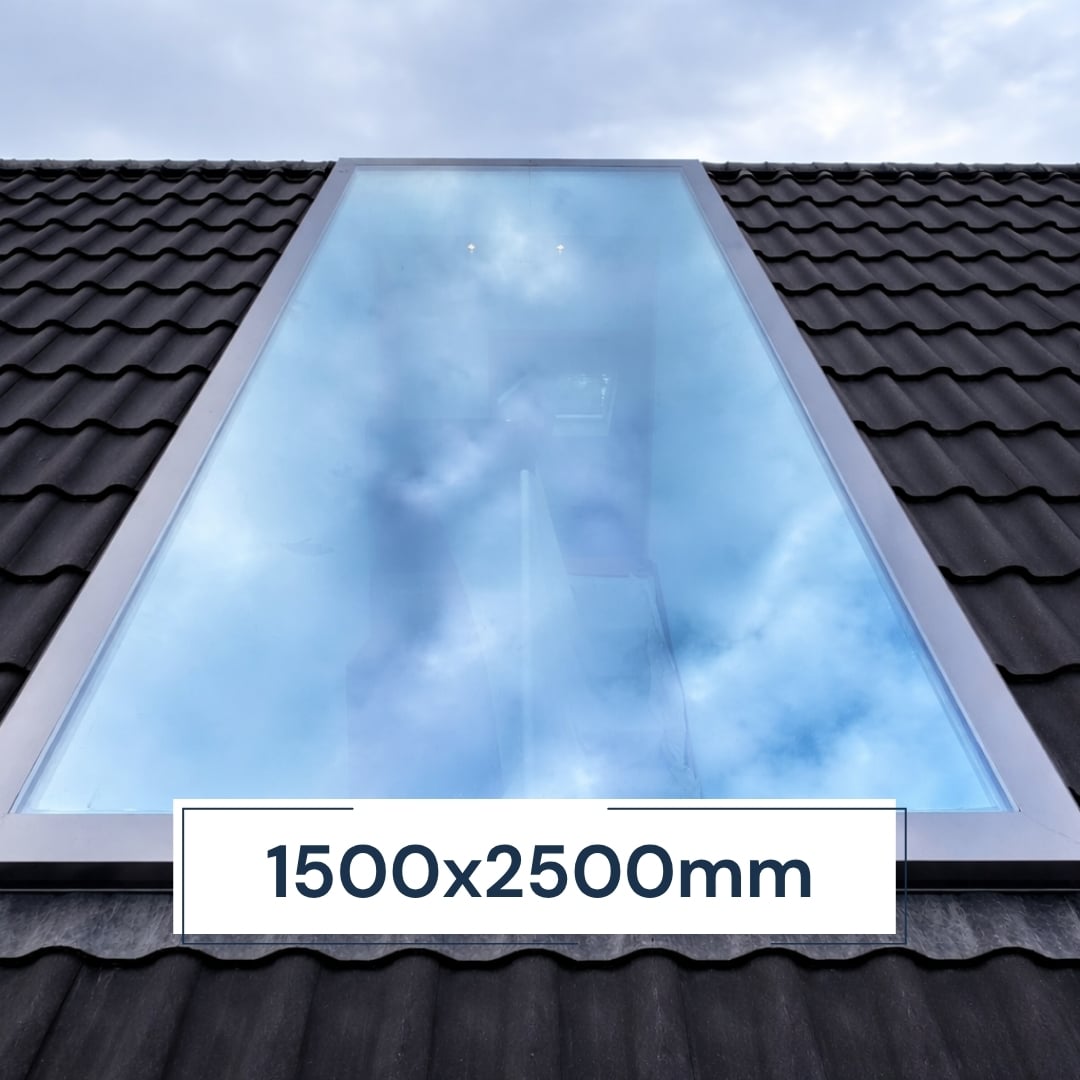

Frameless Skylight for Pitched Roof 1500 x 2500 mm

Pitched Roof Skylight / Rooflight 1500 x 2500 mm

Bring light, style, and sophistication into your home with the Rooflight Factory Pitched Roof Skylight. Designed for pitched and tiled roofs, this sleek, frameless rooflight combines modern aesthetics with exceptional thermal performance. It transforms interior spaces by flooding them with natural light while maintaining energy efficiency and durability.

Contemporary Frameless Design

Expertly crafted to the highest standards, the Rooflight Factory Pitched Roof Skylight features a fully frameless design both inside and out, creating a seamless visual connection between your interior and the sky above. The minimalist aesthetic enhances any architectural style, offering a clean, modern finish. Installation is quick and straightforward using lead flashing cut on-site, suitable for all roof types. The result is a premium-quality rooflight that’s as functional as it is beautiful.

High-Performance Glazing

This non-opening skylight is built with triple glazing for superior insulation, sound reduction, and light transmission. It uses advanced materials that ensure long-lasting clarity and performance, keeping your home comfortable throughout the year.

• Glazing Type: Triple Glazed
• Internal Glass Size (Quoted): 1500 x 2500 mm
• External Glass Size: 1700 x 2700 mm
• Spacer Type: 15 mm Black Warm Edge
• Air Gap: 16 mm, 90% Argon Filled
• Top Glass Pane: 8 mm Planibel Clearlite / Thermally toughened glass BS EN 12150
• Middle Glass Pane: 6 mm iplus Thermally toughened glass with Low-E coating EN 12150
• Bottom Glass Pane: 8 mm Planibel Clearlite / Thermally toughened glass BS EN 12150
• U Value: 0.9 W/m²K
• G Value: 58%
• Net Weight: 223 kg
• Self-Cleaning: Yes
• UV Protected: Yes
• Tint: Clear

Note: For skylights exceeding one metre in width, it is recommended that the bottom glass pane is thermally toughened to ensure optimal strength and stability.

Safety & Compliance

At Rooflight Factory, safety and quality go hand in hand. This product fully complies with British Standards and Building Regulations, with all relevant safety markings in place. It is CE marked, confirming compliance with EU directives for construction products. The skylight can be installed on roof pitches up to 45 degrees, offering flexibility across various residential and commercial applications.

Installation Guidelines

• Internal Dimensions: The top pane includes a black border, increasing the external dimensions by approximately 200 mm in each direction.
• Creating the Opening: Allow an additional 10 mm internally (from upstand to upstand) for accurate fitting. For example, a 600 x 900 mm skylight requires a 610 x 910 mm internal opening.
• Upstand Construction: The upstand (wooden framework) should be built using 2×1 or 2×2-inch timbers for strength and precision.
• Foam Rope & Sealant: Place foam rope over the supporting baton to balance weight and minimise stress on the glass. Apply Dowsil 791 black sealant around the upstand for a watertight finish. Avoid acrylic sealants, which are not compatible with the system.
• Flashing: Flashing should fully surround the upstand to form a secure seal with the roof tiles. Flashing rolls are available in 7.5-metre lengths, suitable for skylights with a total perimeter of up to 6 metres (e.g. a 1000 x 2000 mm unit).

Customisation Options

Every project is unique, and Rooflight Factory offers custom-size skylight calculators for both standard and oversized frameless rooflights. This ensures the perfect fit for your roof while maintaining design consistency and structural precision.

Why Choose Rooflight Factory?

• Best Price Guarantee
• 20-Year Warranty
• Secure Payment Protection
• Self-Cleaning, Clear-Tint, UV-Protected Glass
• Free Delivery within London (M25)
• Safety Toughened and Laminated Glass
• Manufactured in the EU
• London-Based Stock for Fast Dispatch
• Quick and Easy Installation
• Step-by-Step Installation Guide Included

Enhance your home with the Rooflight Factory Pitched Roof Skylight — a fusion of refined design, outstanding performance, and lasting durability. Experience the perfect balance of light, strength, and efficiency for your modern British home.
