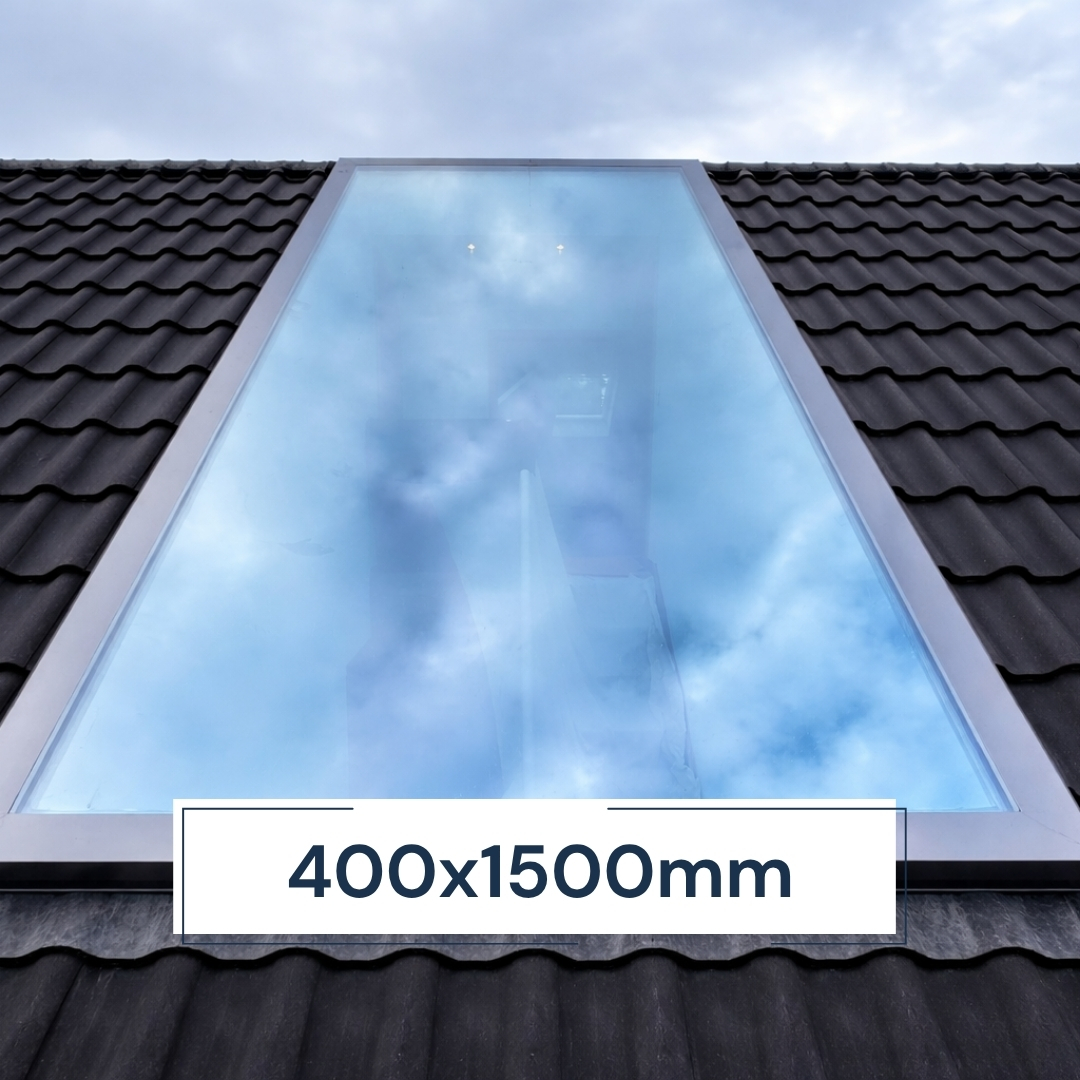

Pitched Roof Skylight / Rooflight 400 x 1500 mm
Introduce natural light and modern design to your home with the Rooflight Factory Pitched Roof Skylight. Perfect for pitched and tiled roofs, this frameless rooflight delivers a clean, contemporary appearance while improving energy efficiency and interior brightness. Its slim profile and high-performance glazing make it a stylish and practical addition to any space.
Modern Frameless Design
Expertly engineered for strength, durability, and aesthetics, the Rooflight Factory Pitched Roof Skylight features a fully frameless finish both inside and out. This design allows for maximum daylight entry and an uninterrupted sky view, transforming the look and feel of your living or working environment. Installation is simple using lead flashing that’s cut on-site, ensuring compatibility with a variety of roof structures.
Performance & Specifications
- Glazing Type: Triple Glazed
- Internal Glass Size (Quoted): 400 x 1500 mm
- External Glass Size: 600 x 1700 mm
- Spacer Type: 15 mm Black Warm Edge
- Air Gap: 16 mm, 90% Argon Filled
- Top Glass Pane: 6 mm Planibel Clearlite / Thermally toughened glass BS EN 12150
- Middle Glass Pane: 6 mm iplus Thermally toughened glass with Low-E coating EN 12150
- Bottom Glass Pane: Stratobel Clearlite 44.2 / Laminated glass EN 14449
- U Value: 0.9 W/m²K
- G Value: 58%
- Net Weight: 34 kg
- Self-Cleaning: Yes
- UV Protected: Yes
- Tint: Clear
Safety & Compliance
Every Rooflight Factory product is built with safety and compliance in mind. This skylight meets all relevant British Standards and Building Regulations, ensuring long-term reliability and peace of mind. It carries full safety markings and is CE marked to confirm conformity with European directives. Suitable for installation on roof pitches up to 45 degrees, this unit combines versatility with top-tier performance.

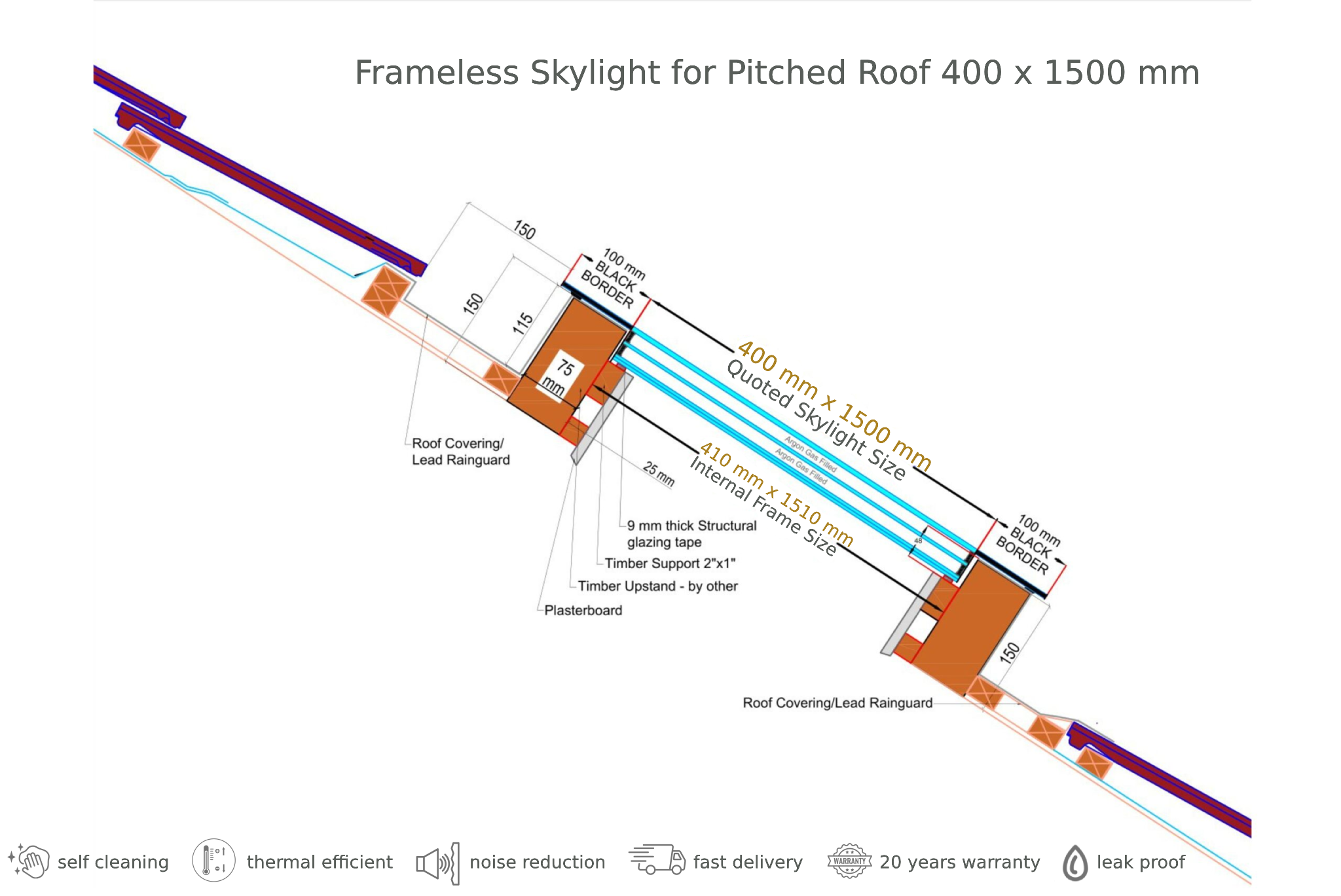

Installation Guidelines
- Internal Dimensions: The top pane includes a black border, extending the external size by 200 mm in each direction.
- Creating the Opening: Allow an extra 10 mm internally (from upstand to upstand) to achieve a correct fit. For example, a 600 x 900 mm skylight requires an opening of 610 x 910 mm.
- Upstand Construction: Construct the upstand (timber frame) using 2×1 or 2×2-inch timber for stability and accuracy.
- Foam Rope & Sealant: Apply foam rope over the supporting baton to evenly distribute weight and reduce stress on the glass. Seal with Dowsil 791 black sealant to ensure a watertight finish. Avoid acrylic sealants, as they are not compatible.
- Flashing: Flashing should fully wrap around the upstand to create a weatherproof seal. Each roll measures 7.5 metres, sufficient for skylights up to approximately 6 metres in perimeter (e.g. a 1000 x 2000 mm unit).
Custom Sizing Options
To accommodate unique architectural requirements, Rooflight Factory provides custom-size skylight calculators for both standard and oversized frameless models. This ensures a precise fit and a cohesive finish for every project.
Why Choose Rooflight Factory?
- Best Price Guarantee
- 20-Year Warranty
- Secure Payment Protection
- Self-Cleaning, Clear-Tint, UV-Protected Glass
- Free Delivery within London (M25)
- All Panels Made from Safety Toughened and Laminated Glass
- Manufactured in the EU
- London-Based Stock for Fast Dispatch
- Quick and Easy Installation
- Step-by-Step Installation Guide Included
With the Rooflight Factory Pitched Roof Skylight, you can achieve the perfect balance of form and function. Its sleek, frameless design enhances your home’s aesthetic while providing exceptional insulation, easy maintenance, and lasting performance — an ideal choice for modern British homes.
