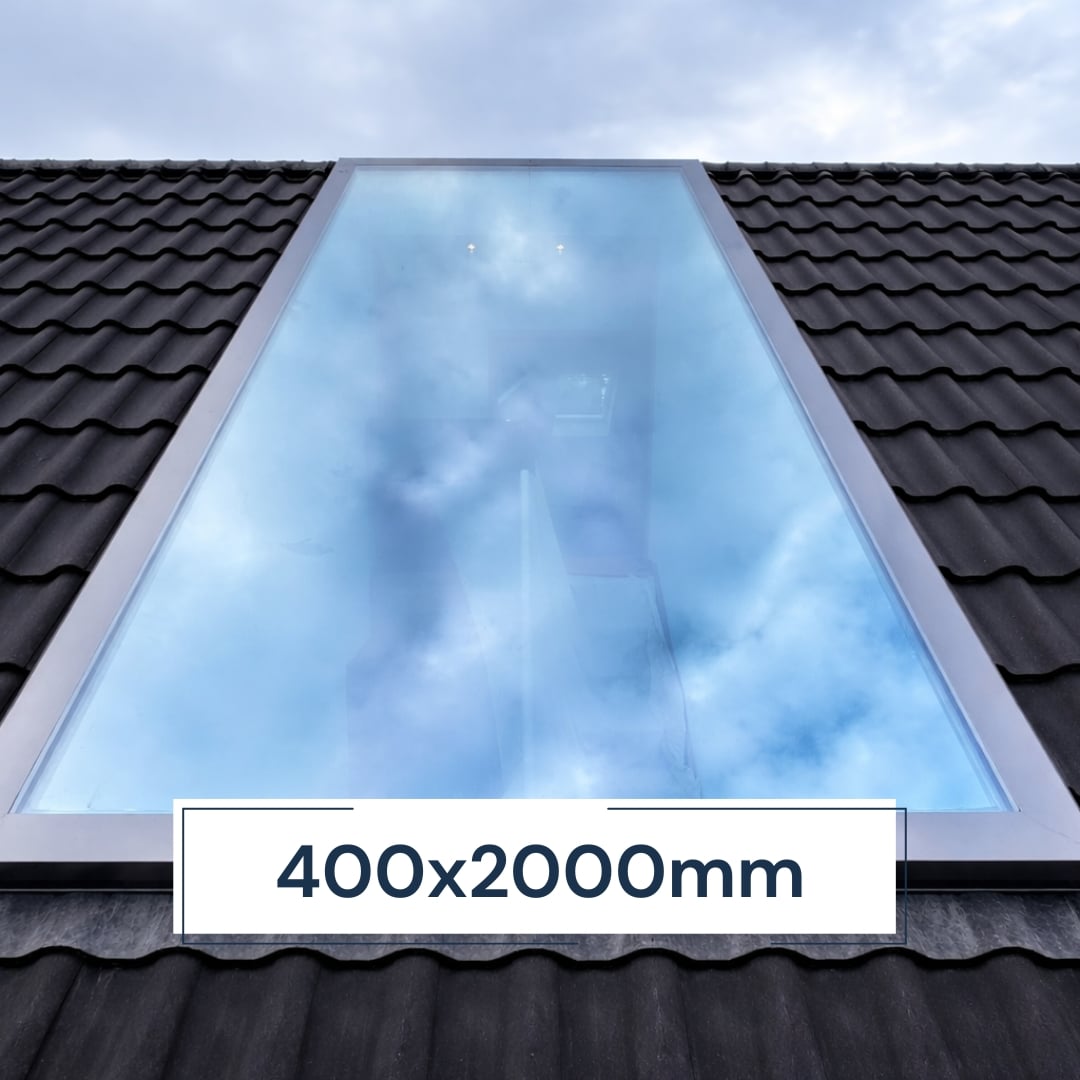

Pitched Roof Skylight / Rooflight 400 x 2000 mm
Enhance your home with the Rooflight Factory Pitched Roof Skylight — a stylish, frameless design that floods your space with natural light. Combining elegance with outstanding performance, this modern skylight is ideal for pitched and tiled roofs, helping to create a bright, open, and inviting atmosphere in any room.
Contemporary Design & Superior Craftsmanship
Expertly manufactured to the highest standards, this non-opening rooflight features a fully frameless finish both inside and out, offering a clean and minimalist aesthetic. The design allows for uninterrupted sky views and increased light transmission. It can be easily installed using lead flashing that’s cut on-site, ensuring compatibility with all roof types. With its precise engineering and premium materials, it delivers long-lasting performance and style.
Technical Specifications
- Glazing Type: Triple Glazed
- Internal Glass Size (Quoted): 400 x 2000 mm
- External Glass Size: 600 x 2200 mm
- Spacer Type: 16 mm Black Warm Edge
- Air Gap: 16 mm, 90% Argon Filled
- Top Glass Pane: 6 mm Planibel Clearlite / Thermally toughened glass BS EN 12150
- Middle Glass Pane: 6 mm iplus Thermally toughened glass with Low-E coating EN 12150
- Bottom Glass Pane: Stratobel Clearlite 44.2 / Laminated glass EN 14449
- U Value: 0.9 W/m²K
- G Value: 58%
- Net Weight: 45 kg
- Self-Cleaning: Yes
- UV Protected: Yes
- Tint: Clear
Safety & Compliance
At Rooflight Factory, safety and quality come first. This product meets all relevant British Standards and Building Regulations, carrying complete safety markings for peace of mind. It is CE marked, confirming compliance with EU directives for products sold within Europe. The skylight can be fitted on roofs with pitches up to 45 degrees, ensuring flexibility for various installation types.

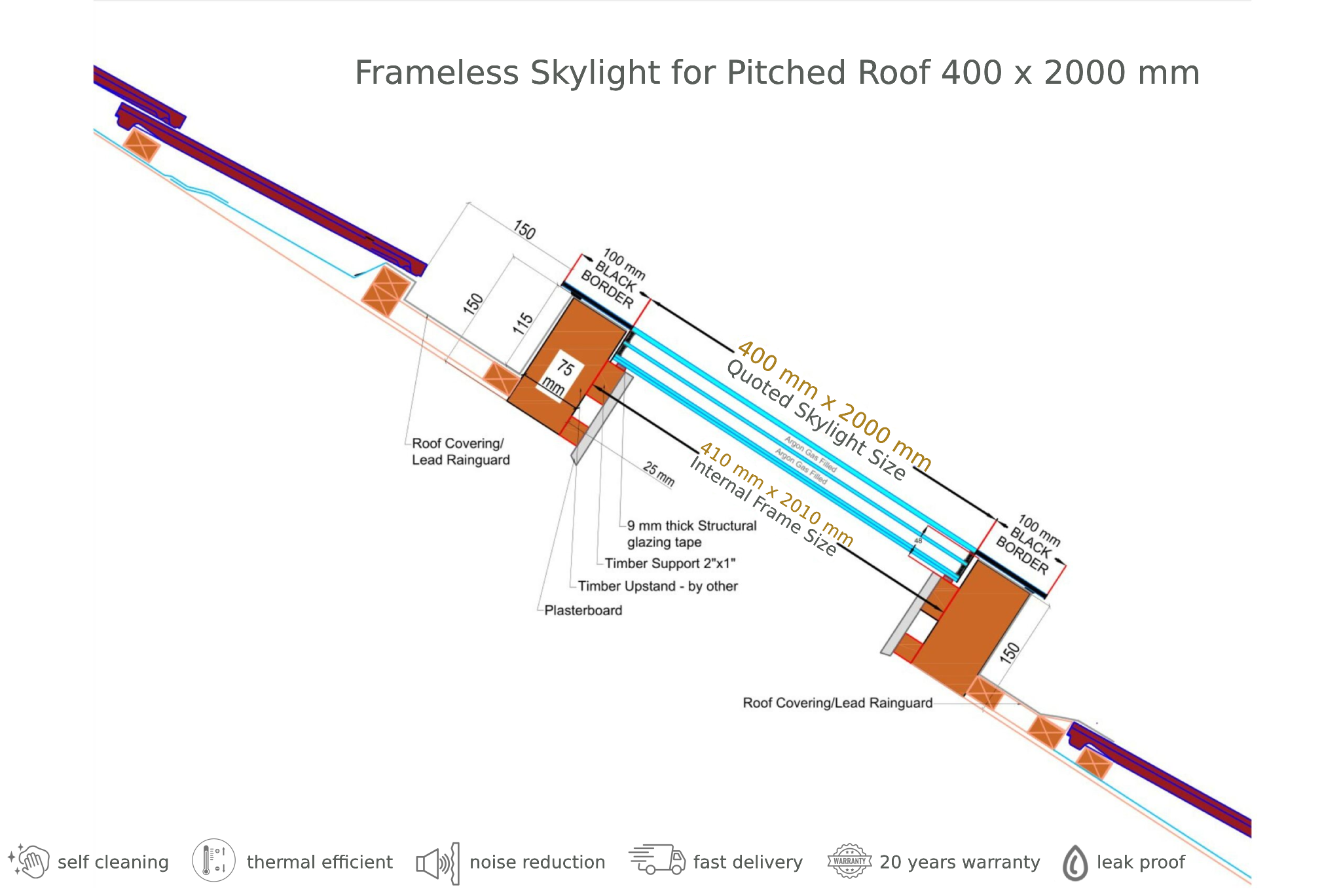

Installation Guidelines
- Internal Dimensions: The top glass pane includes a black border, increasing the external size by approximately 200 mm in each direction.
- Creating the Opening: Allow an extra 10 mm internally (from upstand to upstand) to ensure a precise fit. For example, a 600 x 900 mm skylight requires an opening of 610 x 910 mm.
- Upstand Construction: The upstand (timber framework) should be built using 2×1 or 2×2-inch timber for solid support.
- Foam Rope & Sealant: Place foam rope on the internal baton to balance the weight and minimise stress on the glass. Apply Dowsil 791 black sealant around the upstand for a watertight finish. Avoid acrylic sealants as they are not compatible.

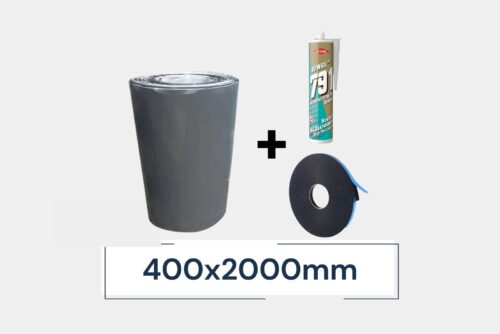

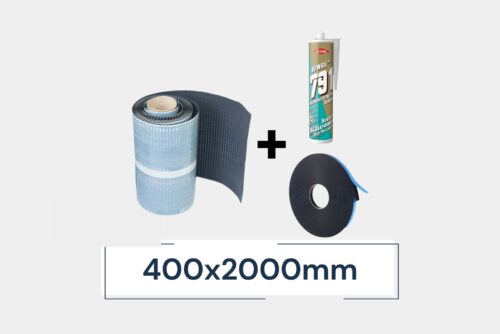

- Flashing: Ensure that flashing covers the full perimeter of the skylight. Each roll (7.5 metres) covers up to 6 metres of perimeter, suitable for units such as 1000 x 2000 mm skylights.
Customisation & Sizing
Every roof is unique, which is why Rooflight Factory provides custom-size skylight calculators for both standard and oversized models. This ensures you can find the perfect fit for your project, whether residential or commercial.
Why Choose Rooflight Factory?
- Best Price Guarantee
- 20-Year Warranty
- Secure Payment Protection
- Self-Cleaning, Clear-Tint, UV-Protected Glass
- Free Delivery within London (M25)
- All Panels Made from Safety Toughened and Laminated Glass
- Manufactured in the EU
- London-Based Stock for Fast Dispatch
- Quick and Easy Installation
- Step-by-Step Installation Guide Included
Bring natural light and modern design together with the Rooflight Factory Pitched Roof Skylight. With its exceptional insulation, refined aesthetics, and easy installation, it’s the perfect choice for homeowners and professionals seeking style, performance, and long-term value.
