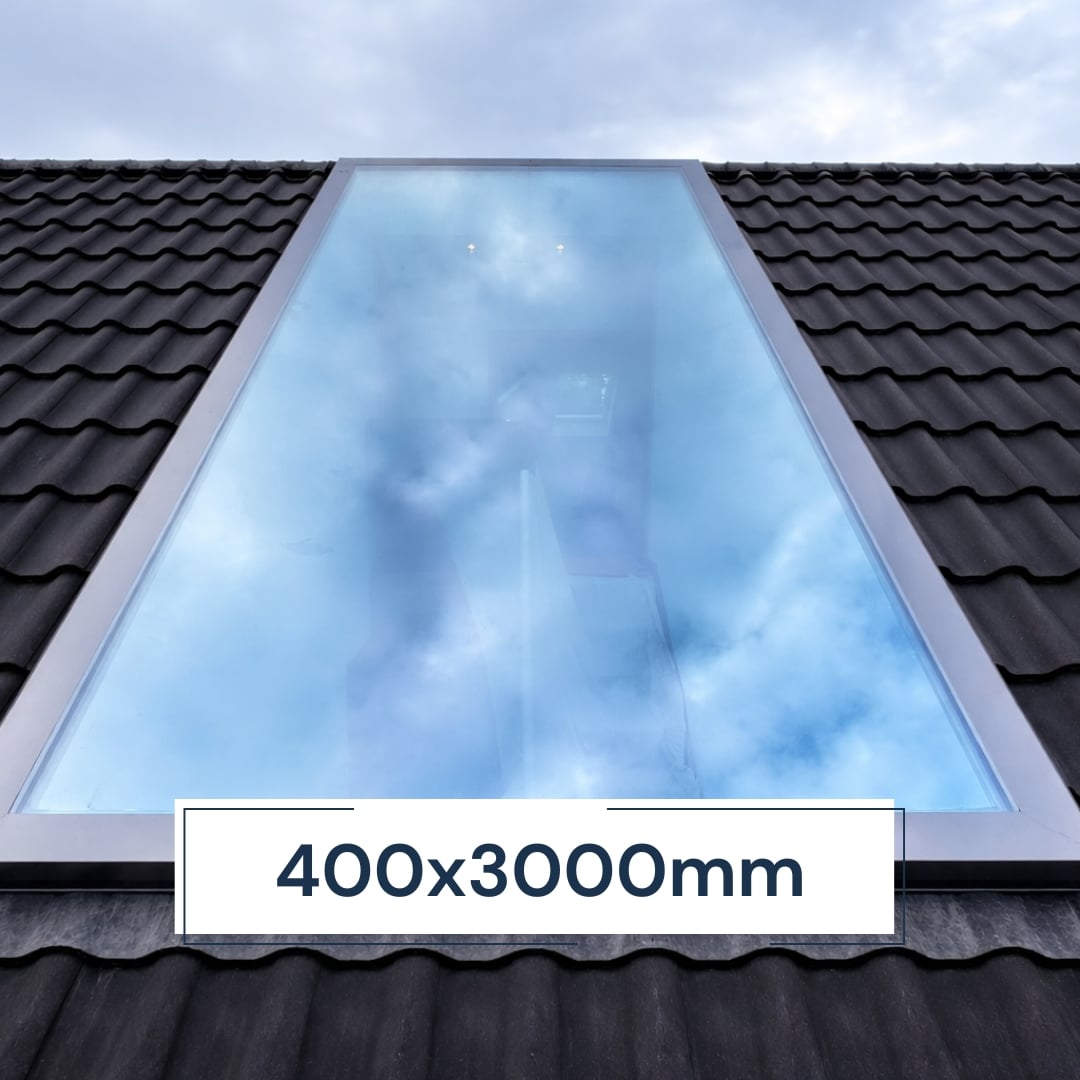

Pitched Roof Skylight / Rooflight 400 x 3000 mm
Transform your home with the Rooflight Factory Pitched Roof Skylight, designed to maximise natural light while offering a sleek, contemporary finish. This frameless skylight enhances both the interior and exterior appearance of your property, combining modern aesthetics with high-performance energy efficiency. Perfect for pitched and tiled roofs, it’s the ideal solution for brightening long spaces such as hallways, kitchens, or extensions.
Elegant Design & Premium Construction
Crafted to the highest manufacturing standards, the Rooflight Factory Pitched Roof Skylight features a fully frameless design both inside and out, delivering a seamless, modern look and allowing unobstructed views of the sky. Installation is straightforward using lead flashing, which can be easily cut on-site to suit your specific roof structure. Its minimalist aesthetic and durable construction make it a lasting investment for your property.
Performance & Technical Specifications
- Glazing Type: Triple Glazed
- Internal Glass Size (Quoted): 400 x 3000 mm
- External Glass Size: 600 x 3200 mm
- Spacer Type: 15 mm Black Warm Edge
- Air Gap: 16 mm, 90% Argon Filled
- Top Glass Pane: 6 mm Planibel Clearlite / Thermally toughened glass BS EN 12150
- Middle Glass Pane: 6 mm iplus Thermally toughened glass with Low-E coating EN 12150
- Bottom Glass Pane: Stratobel Clearlite 44.2 / Laminated glass EN 14449
- U Value: 0.9 W/m²K
- G Value: 58%
- Net Weight: 66 kg
- Self-Cleaning Glass: Yes
- UV Protection: Yes
- Tint: Clear
Safety & Compliance
Safety and quality are integral to every Rooflight Factory product. This skylight conforms fully to British Standards and Building Regulations and includes all required safety markings. It is CE marked, demonstrating compliance with EU directives for products sold across Europe. The skylight is suitable for installation at roof pitches of up to 45 degrees, ensuring flexibility and reliability in a range of architectural designs.

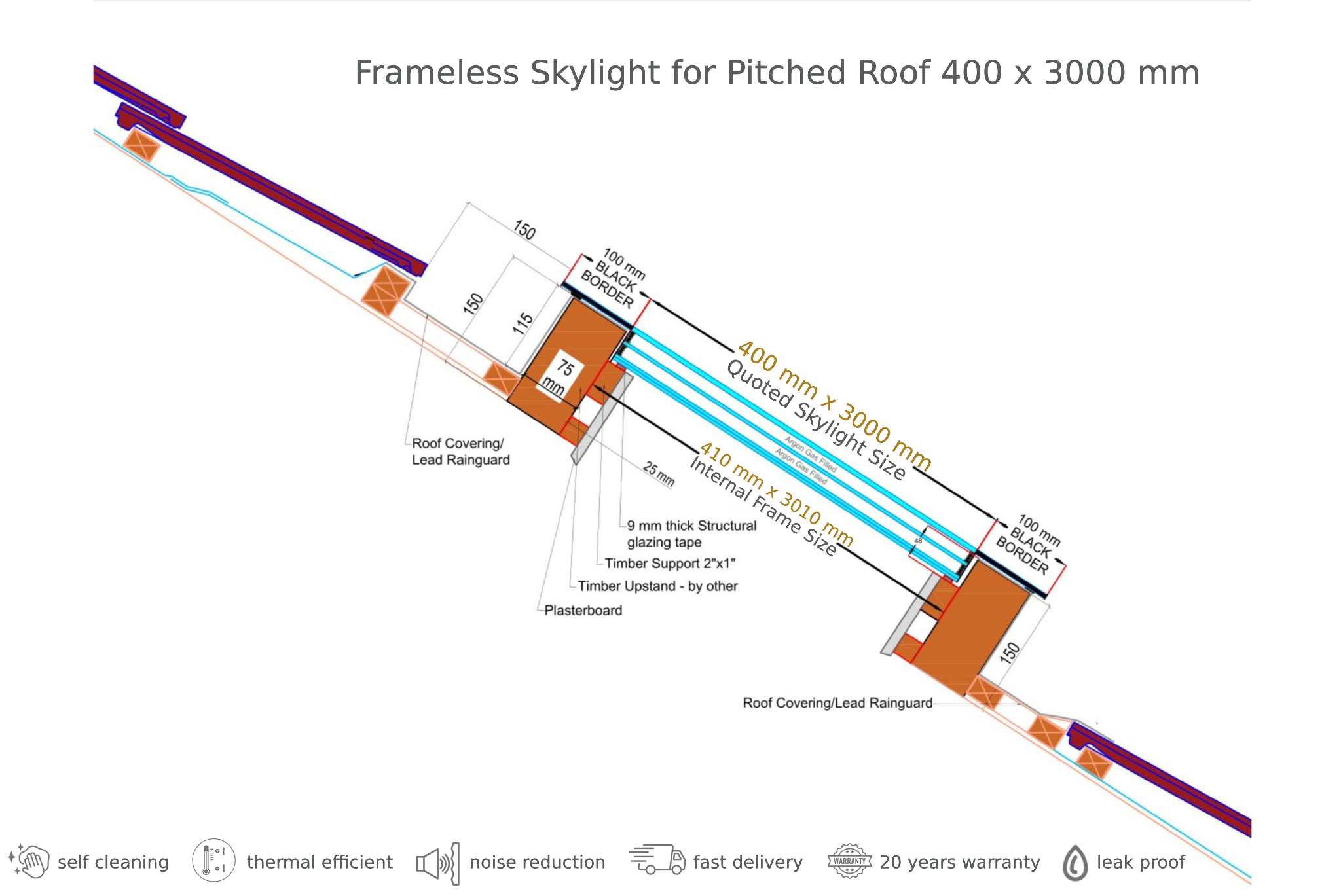

Installation Recommendations
- Internal Dimensions: The top glass pane features a black border, extending the external size by approximately 200 mm in each direction.
- Creating the Opening: Allow an additional 10 mm internally (from upstand to upstand) to achieve the correct fit. For example, a 600 x 900 mm skylight requires an opening of 610 x 910 mm.
- Upstand Construction: Construct the upstand using 2×1 or 2×2-inch timber for stable support and a precise fit.

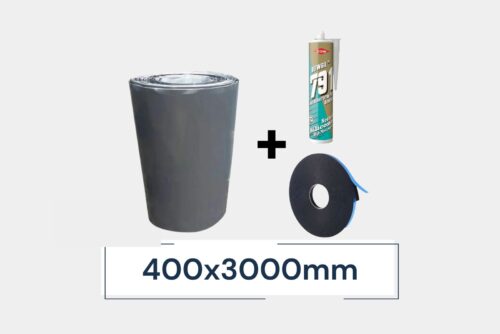

- Foam Rope & Sealant: Apply foam rope above the internal supporting baton to evenly distribute weight and prevent stress on the glass. Use Dowsil 791 black sealant to create a watertight seal around the upstand. Avoid using acrylic sealants, which are not compatible with this product.
- Flashing: The flashing must cover the full perimeter of the skylight. Flashing rolls are supplied in 7.5-metre lengths—sufficient for units with a total circumference of up to approximately 6 metres (e.g. a 1000 x 2000 mm skylight).
Customisation Options
Every roof is unique, and Rooflight Factory offers convenient custom-size skylight calculators for both standard and oversized frameless designs. This ensures a perfect fit and finish, no matter your project requirements.
Why Choose Rooflight Factory?
- Best Price Guarantee
- 20-Year Warranty
- Secure Payment Protection
- Self-Cleaning, Clear-Tint, UV-Protected Glass
- Free Delivery within London (M25)
- All Panels Made from Safety Toughened and Laminated Glass
- Manufactured in the EU
- London-Based Stock for Fast Dispatch
- Quick and Easy Installation
- Step-by-Step Installation Guide Included
Enhance your property with the Rooflight Factory Pitched Roof Skylight — a stylish, durable, and energy-efficient solution that floods your space with natural light while delivering premium performance and timeless design.
