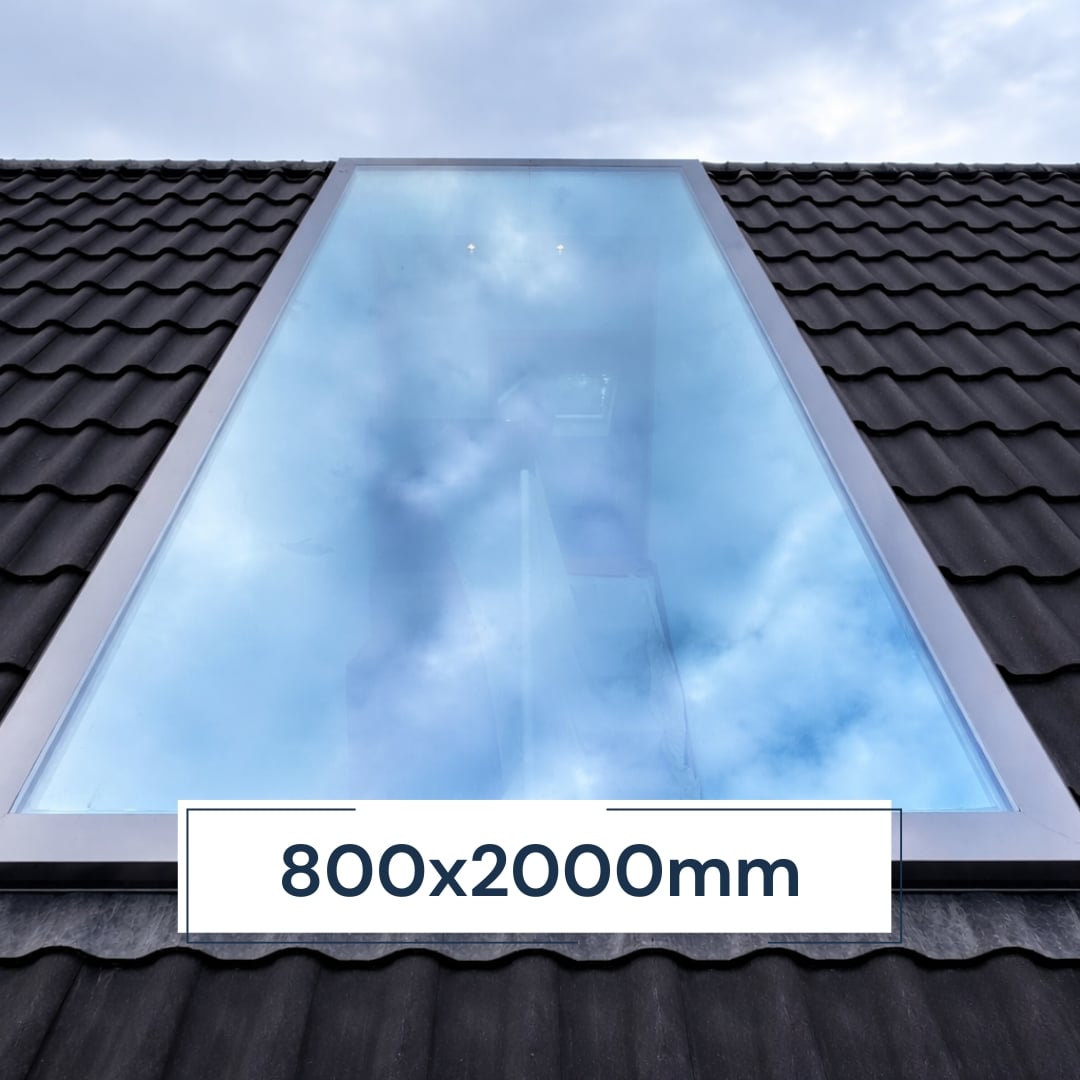

Frameless Skylight for Pitched Roof 800 x 2000 mm

Pitched Roof Skylight / Rooflight 800 x 2000 mm

Brighten up your home with the Rooflight Factory Pitched Roof Skylight — a beautifully crafted frameless rooflight designed to maximise natural light while delivering superior energy efficiency. Perfect for pitched or tiled roofs, this sleek, modern skylight combines functionality with contemporary style to enhance the comfort and appearance of any living space.

Frameless Design for a Modern Look

Manufactured to exacting standards, the Rooflight Factory Pitched Roof Skylight features a completely frameless design both inside and out, offering an elegant and unobstructed view of the sky. Its minimalist finish allows more light to fill your room, creating a bright and airy atmosphere. Installation is straightforward, with lead flashing cut on-site to suit all roof types for a secure and professional fit.

Triple Glazing for Outstanding Performance

This high-performance, non-opening skylight is equipped with triple glazing for maximum insulation and sound reduction. The self-cleaning glass keeps maintenance to a minimum, while UV protection safeguards interiors from sun damage. With a U-value of just 0.9 W/m²K, this skylight provides excellent energy efficiency, helping reduce heat loss during colder months and limiting solar gain in summer.

• Glazing Type: Triple Glazed
• Internal Glass Size (Quoted): 800 x 2000 mm
• External Glass Size: 1000 x 2200 mm
• Spacer Type: 15 mm Black Warm Edge
• Air Gap: 16 mm, 90% Argon Filled
• Top Glass Pane: 6 mm Planibel Clearlite / Thermally toughened glass BS EN 12150
• Middle Glass Pane: 6 mm iplus Thermally toughened glass with Low-E coating EN 12150
• Bottom Glass Pane: Stratobel Clearlite 44.2 / Laminated glass EN 14449
• U Value: 0.9 W/m²K
• G Value: 58%
• Net Weight: 81 kg
• Self-Cleaning: Yes
• UV Protected: Yes
• Tint: Clear

Safety and Compliance

At Rooflight Factory, safety is paramount. This skylight conforms to all British Standards and Building Regulations, carrying the required safety markings and CE certification to ensure full compliance with EU directives. Designed for flexibility and reliability, the unit can be installed on roofs with pitches of up to 45 degrees, making it suitable for a variety of projects.

Installation Guidelines

• Internal Dimensions: The top glass pane features a black border, extending the external size by approximately 200 mm on each side.
• Creating the Opening: Allow an additional 10 mm internally (upstand to upstand) for a perfect fit. For instance, a 600 x 900 mm skylight requires an opening of 610 x 910 mm.
• Upstand Construction: Construct the upstand using 2×1 or 2×2-inch timber for stability and support.

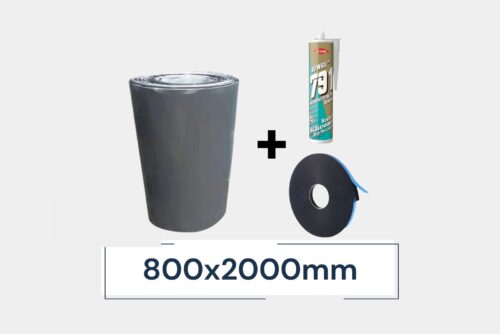

• Foam Rope & Sealant: Place foam rope on top of the internal supporting baton to distribute weight evenly. Seal the perimeter using Dowsil 791 black sealant to achieve a watertight finish. Note: acrylic sealants should not be used as they are incompatible.
• Flashing: Ensure full coverage around the skylight to seal it to the roof tiles. Flashing rolls are supplied in 7.5-metre lengths — one roll is sufficient for a skylight with a total perimeter of 6 metres (e.g., 1000 x 2000 mm).

Customisation Options

Rooflight Factory provides a range of custom-size skylight calculators to help you design the perfect fit for your project. Whether you require a standard or oversized frameless skylight, each unit is manufactured with precision and durability in mind.

Why Choose Rooflight Factory?

• Best Price Guarantee
• 20-Year Warranty
• Secure Payment Protection
• Self-Cleaning, Clear-Tint, UV-Protected Glass
• Free Delivery within London (M25)
• All Panels Made from Safety Toughened and Laminated Glass
• Manufactured in the EU
• London-Based Stock for Fast Delivery
• Quick and Easy Installation
• Step-by-Step Installation Guide Included

Bring light, warmth, and sophistication into your home with the Rooflight Factory Pitched Roof Skylight. Designed for efficiency and style, it’s the perfect combination of contemporary elegance and reliable performance — enhancing both the look and comfort of your property.
