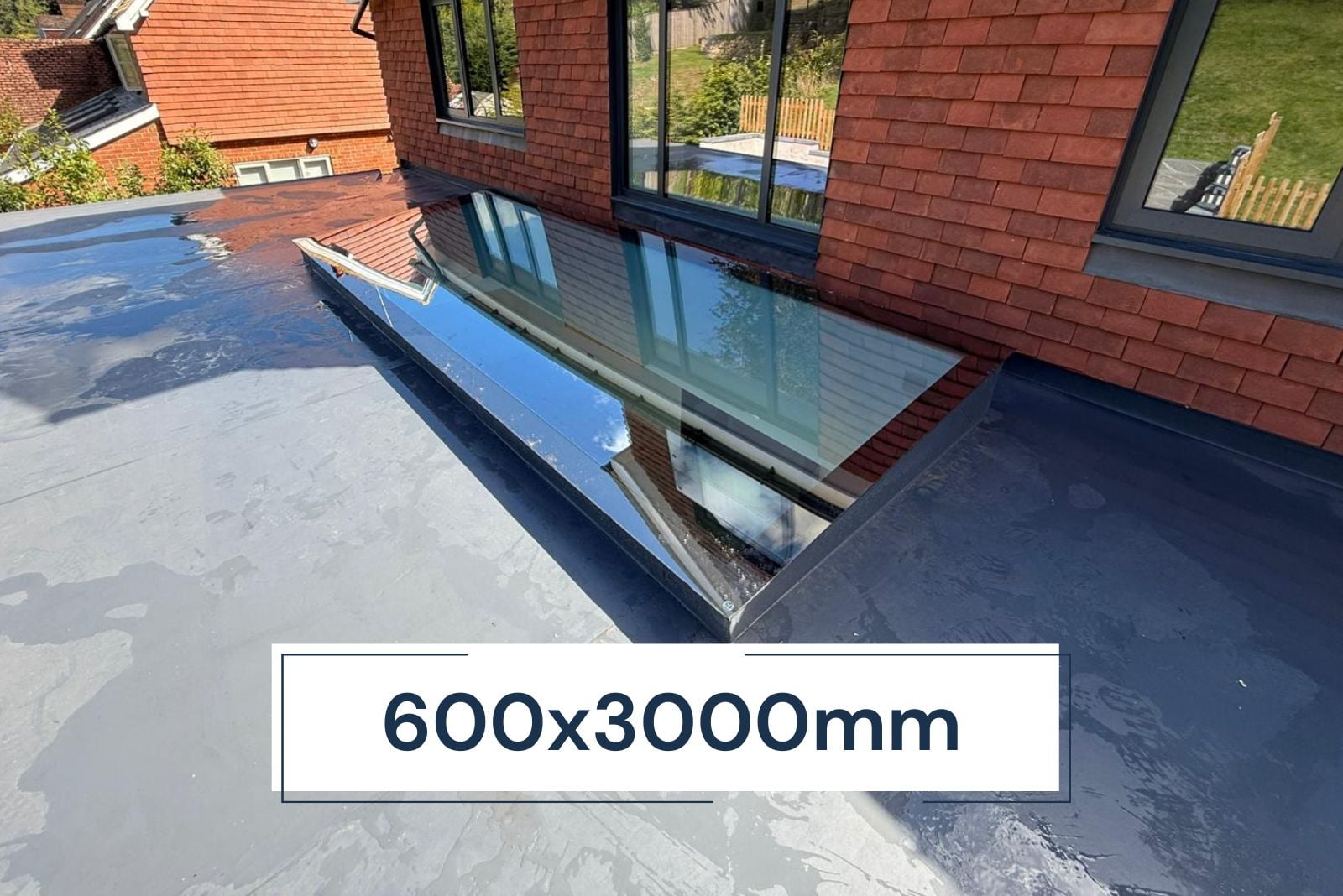

Rooflight Factory Flat Roof Skylight – Triple Glazed for Superior Light and Energy Efficiency
Bring natural light and contemporary style into your home with the Rooflight Factory Flat Roof Skylight. Designed for both performance and aesthetics, this triple-glazed unit delivers outstanding insulation, durability, and clarity. Ideal for extensions, living spaces, and commercial buildings, it provides a modern architectural feature that enhances comfort and energy efficiency all year round.
Exceptional Triple-Glazed Construction
Each Rooflight Factory skylight is engineered using three precision-crafted glass layers that work together to provide strength, safety, and high thermal performance:
- Top Glass Layer: 6 mm Planibel Clearlite / Thermally toughened glass BS EN 12150
- Middle Glass Layer: 6 mm iplus Thermally toughened glass with Low-E coating EN 12150
- Bottom Glass Layer: Stratobel Clearlite 44.2 / Laminated glass EN 14449
This configuration ensures optimal performance with a U-value of 0.9 W/m²K and a G-value of 58%. The Low-E coating improves energy efficiency by reflecting heat back indoors during winter and minimising solar heat gain in summer. With a clear tint finish, it provides maximum daylight penetration while maintaining thermal comfort and UV protection.
Technical Specifications
- Glazing Type: Triple Glazed
- Internal Glass Size: 600 x 3000 mm
- External Glass Size: 800 x 3200 mm
- Top Glass Pane: 6 mm Planibel Clearlite / Thermally toughened glass BS EN 12150
- Middle Glass Pane: 6 mm iplus Thermally toughened glass with Low-E coating EN 12150
- Bottom Glass Pane: Stratobel Clearlite 44.2 / Laminated glass EN 14449
- Spacer Type: 15 mm Black Warm Edge
- Air Gap: 15 mm, 90% Argon Filled
- U Value: 0.9 W/m²K
- G Value: 58%
- Net Weight: 92.4 kg
- Self-Cleaning: Yes
- UV Protection: Yes
- Tint: Clear
Safety and Compliance
Every Rooflight Factory skylight is manufactured to meet British Standards and Building Regulations. Each unit is CE marked and includes full Safety Markings, confirming its compliance with European product standards. Suitable for installation at roof pitches up to 45 degrees, this skylight combines modern design with strict safety assurance.

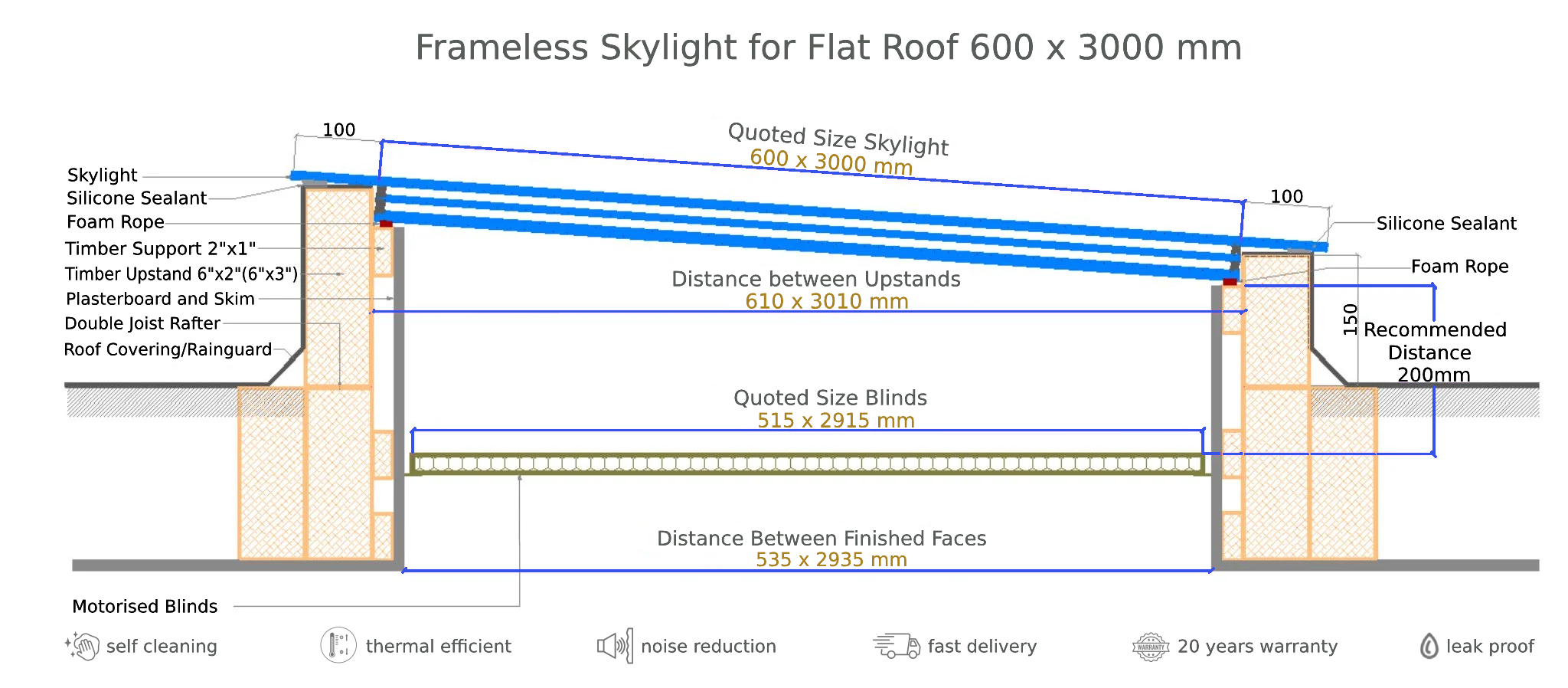

Installation Recommendations
For a precise and professional installation, please follow these key guidelines:
- Dimensions: The top glass includes a black border that extends the external dimensions by 200 mm in every direction.
- Opening Preparation: Allow an extra 10 mm internally from upstand to upstand for accurate fitting. For instance, a 600 x 900 mm skylight should have a 610 x 910 mm opening.
- Upstand Construction: Build the upstand (timber frame) using 2×1 or 2×2 inch timbers to provide a stable and supportive base.
- Foam Rope & Sealant: Apply foam rope on the internal supporting baton to balance the glass weight. Use Dowsil 791 black silicone sealant for a watertight perimeter. Avoid acrylic sealants, as they are not compatible with the skylight system.
Customisation Options
At Rooflight Factory, we offer bespoke skylight solutions tailored to your project’s requirements. Choose from our Custom Size Frameless Skylight Calculator or Custom Oversize Frameless Skylight Calculator to design the perfect fit for your home or commercial space.
Why Choose Rooflight Factory?
- Best Price Guarantee
- 20-Year Warranty
- Secure Payment Protection
- Self-Cleaning & UV Protected Glass
- Clear Tint for Maximum Natural Light
- Free Delivery within London (M25)
- All Panels Safety Toughened and Laminated
- Made in the EU with London-Based Stock
- Quick and Easy Installation
- Step-by-Step Installation Guide Included
Rooflight Factory Flat Roof Skylights combine refined design, precision engineering, and energy-efficient glazing to deliver the perfect balance of beauty and performance. Built to last, they offer exceptional clarity, comfort, and contemporary style for modern homes and commercial spaces.
