Rooflight Factory Flat Roof Skylight – Triple Glazed Strength, Clarity, and Energy Efficiency
Transform your living space with the Rooflight Factory Flat Roof Skylight, designed to maximise natural light while maintaining outstanding insulation and structural strength. This premium skylight combines contemporary design, advanced glazing technology, and energy efficiency, making it the ideal choice for modern British homes seeking both style and performance.
Precision Triple-Glazed Construction
Each Rooflight Factory skylight is built using three carefully engineered layers of glass, ensuring exceptional durability, clarity, and insulation for long-term reliability:
- Top Glass Layer: 8 mm Planibel Clearlite / Thermally toughened glass BS EN 12150
- Middle Glass Layer: 6 mm iplus Thermally toughened glass with Low-E coating EN 12150
- Bottom Glass Layer: 8 mm Planibel Clearlite / Thermally toughened glass BS EN 12150
Note: For units exceeding one metre in width, the bottom pane is thermally toughened for enhanced structural integrity and stability.
This high-performance glazing achieves a U-value of 0.9 W/m²K and a G-value of 58%, ensuring excellent thermal efficiency. The Low-E coating helps maintain a comfortable indoor temperature throughout the year by reducing heat loss in winter and controlling solar gain during warmer months. The clear tint enhances brightness and provides unobstructed views of the sky.
Product Specifications
- Glazing Type: Triple Glazed
- Internal Glass Size: 1500 x 3000 mm
- External Glass Size: 1700 x 3200 mm
- Top Glass Pane: 8 mm Planibel Clearlite / Thermally toughened glass BS EN 12150
- Middle Glass Pane: 6 mm iplus Thermally toughened glass with Low-E coating EN 12150
- Bottom Glass Pane: 8 mm Planibel Clearlite / Thermally toughened glass BS EN 12150
- Spacer Type: 15 mm Black Warm Edge
- Air Gap: 15 mm, 90% Argon Filled
- U Value: 0.9 W/m²K
- G Value: 58%
- Net Weight: 266.3 kg
- Self-Cleaning: Yes
- UV Protection: Yes
- Tint: Clear
Safety and Compliance
The Rooflight Factory Flat Roof Skylight is designed and manufactured in full compliance with British Standards and Building Regulations, providing confidence in quality and safety. It carries all required Safety Markings and is CE certified, demonstrating conformity with relevant European directives. This skylight can be safely installed on roofs with pitches up to 45 degrees.

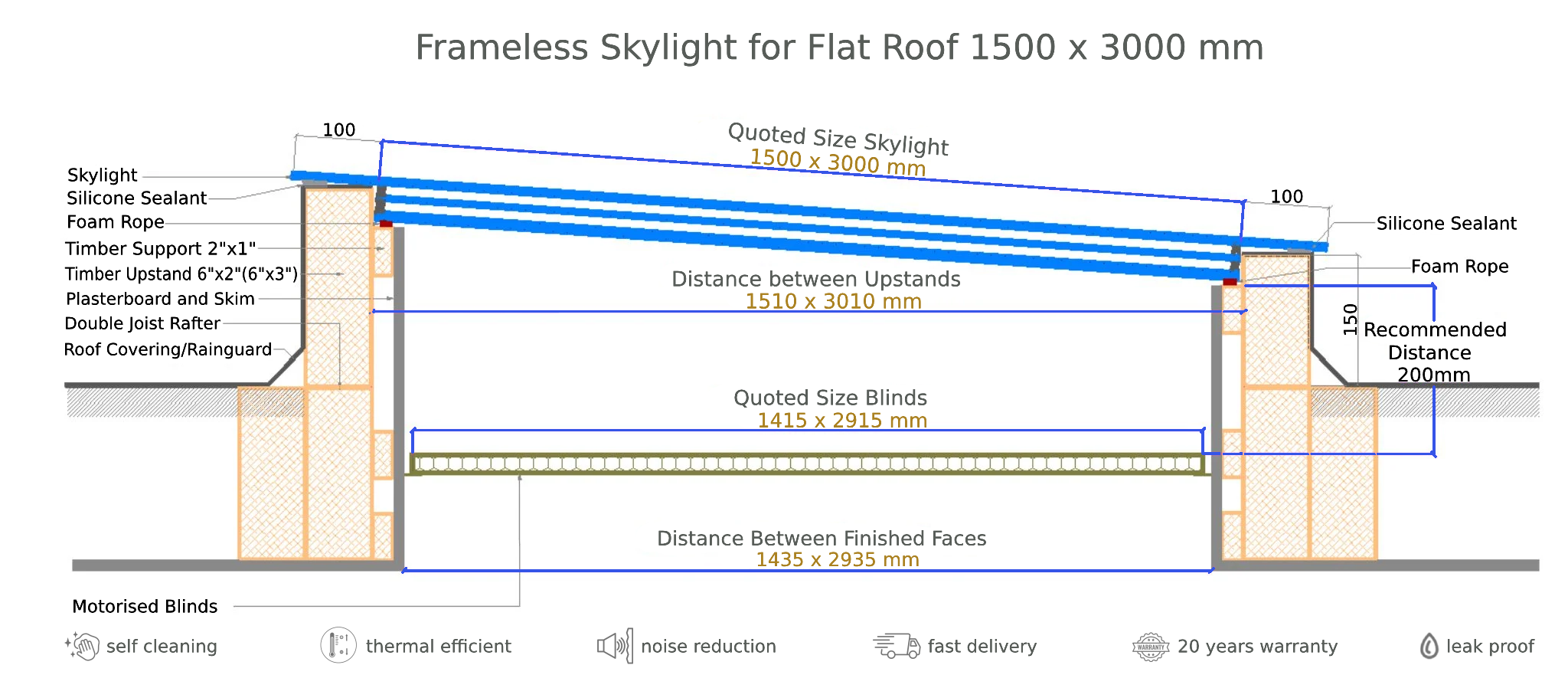

Installation Recommendations
For a precise, watertight, and secure installation, follow these professional guidelines:
- Dimensions: The top pane includes a black border that increases external measurements by 200 mm in each direction.
- Opening Preparation: Allow an extra 10 mm internally from upstand to upstand for a proper fit. For example, a 600 x 900 mm unit should have a 610 x 910 mm internal opening.
- Upstand Construction: Build the upstand using 2×1 or 2×2 inch timbers to ensure a strong and even base.
- Foam Rope & Sealant: Install foam rope on the internal supporting baton to distribute glass weight evenly. Use Dowsil 791 black silicone sealant for a watertight seal. Avoid acrylic sealants, which are incompatible with this product.
Customisation Options
Rooflight Factory offers tailored solutions to fit any project. Choose from our Custom Size Frameless Skylight Calculator or Custom Oversize Frameless Skylight Calculator to design your ideal skylight dimensions. Whether for residential or commercial properties, our made-to-measure service ensures the perfect fit every time.
Why Choose Rooflight Factory?
- Best Price Guarantee
- 20-Year Warranty
- Secure Payment Assurance
- Self-Cleaning & UV Protected Glass
- Clear Tint for Maximum Daylight
- Free Delivery within London (M25)
- All Panels Thermally Toughened for Safety
- Made in the EU with London-Based Stock
- Quick and Easy Installation
- Step-by-Step Installation Guide Included
Rooflight Factory Flat Roof Skylights are a fusion of precision engineering, energy efficiency, and refined design. Perfect for homeowners seeking a sleek, reliable, and high-performing architectural feature, these skylights deliver exceptional light transmission, year-round comfort, and timeless aesthetic appeal.
