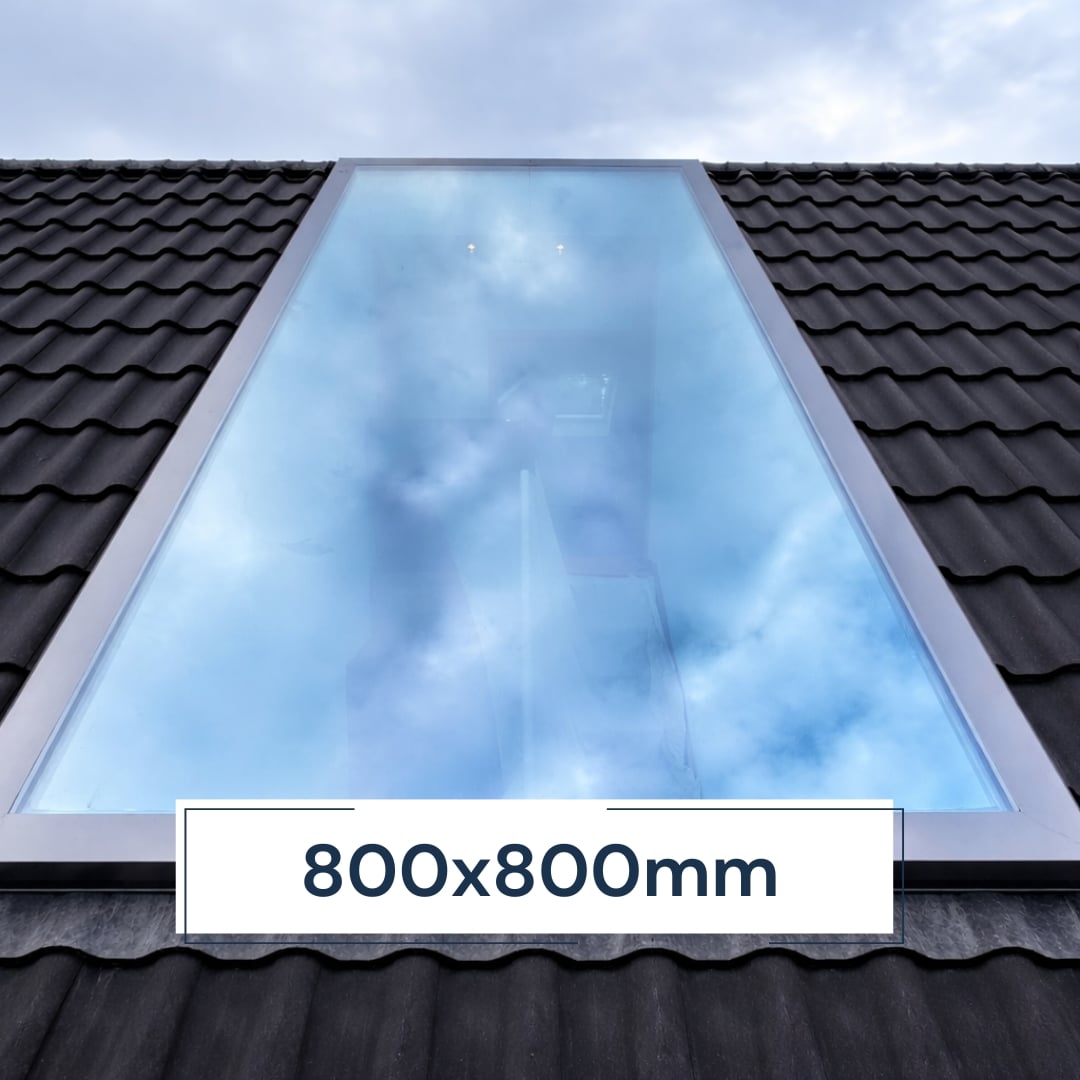

Frameless Skylight for Pitched Roof 800 x 800 mm

Pitched Roof Skylight / Rooflight 800 x 800 mm

Illuminate your home with the Rooflight Factory Pitched Roof Skylight, a beautifully engineered glazing solution designed to maximise natural light and create a modern, elegant interior. With its sleek frameless design, this skylight blends seamlessly into any pitched roof, offering exceptional performance, durability, and energy efficiency.

Frameless Design for Maximum Light

Manufactured to the highest industry standards, the Rooflight Factory Pitched Roof Skylight features a completely frameless design both inside and out. This allows for unobstructed views of the sky and enhances natural illumination, giving your home or workspace a bright and spacious feel. The skylight is compatible with all roof types and can be easily installed using lead flashing, cut on-site to suit your specific roof layout.

Triple Glazed for Superior Thermal Efficiency

This high-performance, non-opening skylight is triple glazed with 6 mm toughened, self-cleaning glass, providing exceptional insulation and clarity. With a U-value of 0.9 W/m²K, it helps maintain a comfortable indoor temperature all year round, reducing heat loss in winter and solar gain in summer. The self-cleaning glass ensures effortless maintenance, allowing rainwater to wash away dirt and debris naturally.

• Glazing Type: Triple Glazed
• Internal Glass Size (Quoted): 800 x 800 mm
• External Glass Size: 1000 x 1000 mm
• Spacer Type: 15 mm Black Warm Edge
• Air Gap: 16 mm, 90% Argon Filled
• Top Glass Pane: 6 mm Planibel Clearlite / Thermally toughened glass BS EN 12150
• Middle Glass Pane: 6 mm iplus Thermally toughened glass with Low-E coating EN 12150
• Bottom Glass Pane: Stratobel Clearlite 44.2 / Laminated glass EN 14449
• U Value: 0.9 W/m²K
• G Value: 58%
• Net Weight: 34.2 kg
• Self-Cleaning: Yes
• UV Protected: Yes
• Tint: Clear

Safety and Compliance

Every Rooflight Factory skylight is manufactured to meet British Standards and Building Regulations, ensuring reliability and long-term safety. Each unit is CE marked, confirming compliance with EU directives and performance standards. Designed for installation on roof pitches up to 45 degrees, this skylight delivers structural strength and durability alongside its refined aesthetic.

Installation Recommendations

• Internal Dimensions: The top glass pane features a black border, extending the external dimensions by 200 mm in each direction.
• Creating the Opening: Allow an additional 10 mm internally (upstand to upstand) for a precise fit. For example, a 600 x 900 mm skylight requires a 610 x 910 mm internal opening.
• Upstand Construction: Construct the upstand using 2×1 or 2×2-inch timber for a secure installation base.
• Foam Rope and Sealant: Use foam rope along the internal baton to balance glass weight and reduce stress. Apply Dowsil 791 black sealant for a watertight seal—avoid acrylic sealants as they are not compatible.
• Flashing: The full perimeter of the skylight must be properly flashed. Rolls are supplied in 7.5-metre lengths, sufficient for units up to approximately 1000 x 2000 mm.

Tailored Options and Versatility

Rooflight Factory offers a variety of standard and custom-sized skylights to suit every architectural need. Whether for residential extensions, loft conversions, or commercial applications, these frameless skylights deliver superior thermal efficiency and elegant design, enhancing both comfort and aesthetics.

Why Choose Rooflight Factory?

• Best Price Guarantee
• 20-Year Warranty
• Secure Payment Protection
• Self-Cleaning, UV-Protected Glass
• Free Delivery within London (M25)
• Safety Toughened and Laminated Glass Panels
• Made in the EU
• London-Based Stock for Fast Delivery
• Quick and Easy Installation
• Comprehensive Installation Guide Included

With the Rooflight Factory Pitched Roof Skylight, you can enjoy a perfect combination of modern aesthetics, energy efficiency, and lasting performance. Designed to transform your space with natural light and style, it’s the ideal choice for homeowners and professionals seeking quality and sophistication.
