Rooflight Factory Flat Roof Skylight – Compact, Efficient, and Built to Last
Brighten your home with the Rooflight Factory Flat Roof Skylight, a premium triple-glazed rooflight designed for exceptional thermal performance, safety, and clarity. Perfect for modern extensions, bathrooms, hallways, or garden rooms, this compact skylight brings in abundant natural light while keeping your interior warm, quiet, and energy efficient all year round.
Triple-Glazed Construction for Superior Performance
Each Rooflight Factory skylight is crafted with three precision-engineered layers of glass, providing optimal strength, insulation, and durability:
- Top Glass Layer: 6 mm Planibel Clearlite / Thermally toughened glass BS EN 12150
- Middle Glass Layer: 6 mm iplus Thermally toughened glass with Low-E coating EN 12150
- Bottom Glass Layer: Stratobel Clearlite 44.2 / Laminated glass EN 14449
This advanced glazing system offers a U-value of 0.9 W/m²K and a G-value of 58%, ensuring excellent thermal insulation and natural light transmission. The Low-E coating reflects heat back into your home during winter while keeping interiors cooler in summer. Each unit also features self-cleaning glass, UV protection, and a clear tint for enhanced visibility and minimal maintenance.
Technical Specifications
- Glazing Type: Triple Glazed

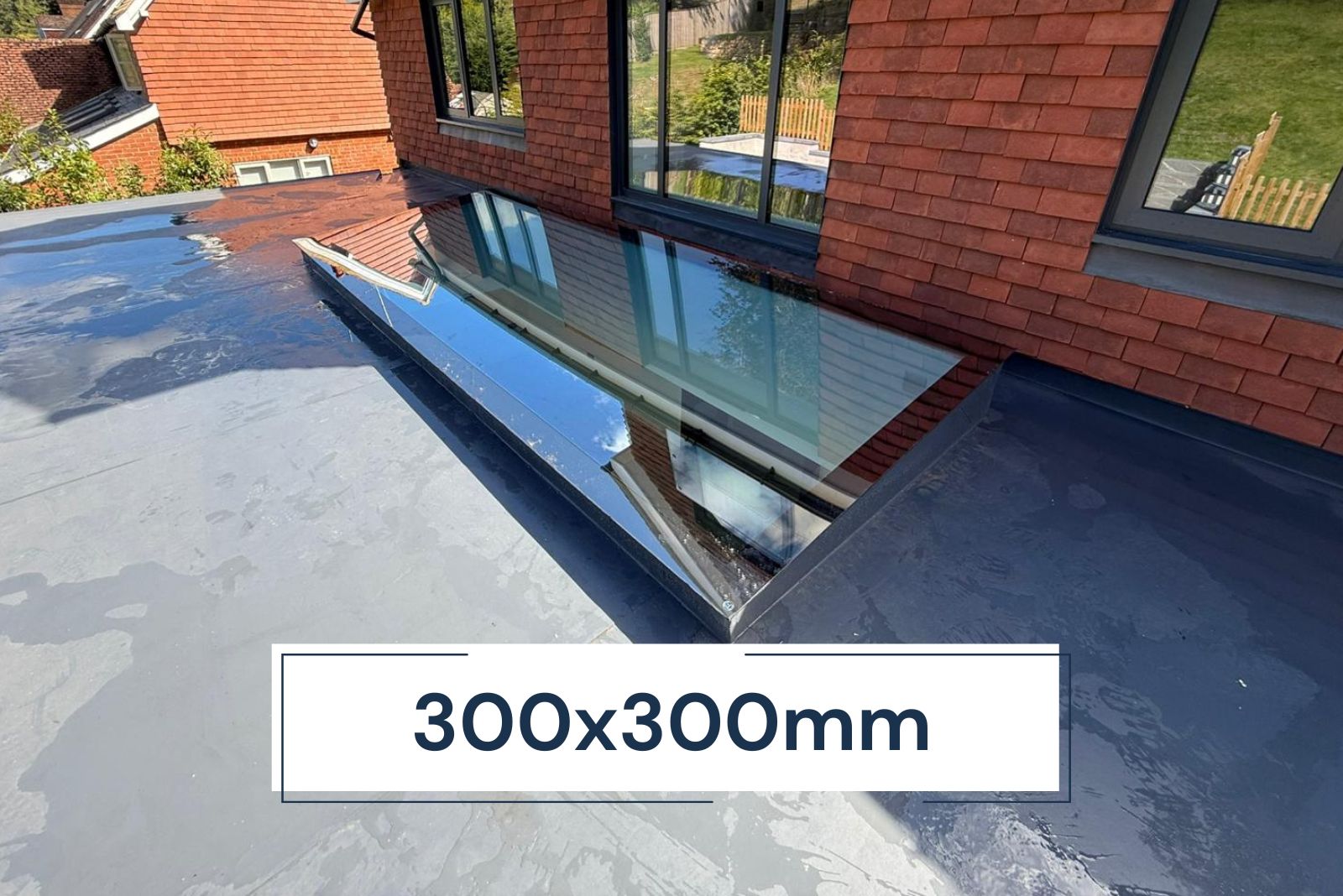

- Internal Glass Size: 300 x 300 mm
- External Glass Size: 500 x 500 mm
- Top Glass Pane: 6 mm Planibel Clearlite / Thermally toughened glass BS EN 12150
- Middle Glass Pane: 6 mm iplus Thermally toughened glass with Low-E coating EN 12150
- Bottom Glass Pane: Stratobel Clearlite 44.2 / Laminated glass EN 14449
- Spacer Type: 15 mm Black Warm Edge
- Air Gap: 15 mm, 90% Argon Filled
- U Value: 0.9 W/m²K
- G Value: 58%
- Net Weight: 6.45 kg
- Self-Cleaning: Yes
- UV Protection: Yes
- Tint: Clear
Safety and Compliance
Rooflight Factory skylights are designed and tested to meet the highest standards of safety and performance. Each unit conforms to British Standards and Building Regulations, and carries full Safety Markings. This skylight is also CE marked, ensuring compliance with EU and UK regulations for construction products. It can be safely installed on roofs with pitches of up to 45 degrees.
Installation Recommendations
For a precise and watertight installation, please follow the guidance below:
- Dimensions: The top glass pane includes a black border, increasing the external size by 200 mm in each direction.
- Opening Preparation: Allow an additional 10 mm internally from upstand to upstand for proper fitting. For example, a 600 x 900 mm unit requires a 610 x 910 mm internal opening.
- Upstand Construction: Construct the upstand (timber framework) using 2×1 or 2×2 inch timbers for stable support.
- Foam Rope and Sealant: Apply foam rope on the internal supporting baton to balance glass weight. Use Dowsil 791 black silicone sealant to ensure a watertight seal. Acrylic sealants are not compatible and should be avoided.
Customisation Options
Rooflight Factory also offers custom-sized frameless skylights and oversized frameless skylights for bespoke architectural projects, ensuring a perfect fit for every design and dimension.
Why Choose Rooflight Factory?
- Best Price Guarantee
- 20-Year Warranty
- Secure Payment Protection
- Self-Cleaning and UV Protected Glass
- Clear Tint for Maximum Natural Light
- Free Delivery within London (M25)
- All Glass Panels Safety Toughened and Laminated
- Made in the EU with London-Based Stock
- Quick and Easy Installation
- Step-by-Step Installation Guide Included
The Rooflight Factory Flat Roof Skylight combines modern design, advanced glazing technology, and outstanding energy efficiency in a compact format. Whether for a contemporary home or a smaller project, it’s the perfect choice for adding natural light, style, and comfort to your space.
