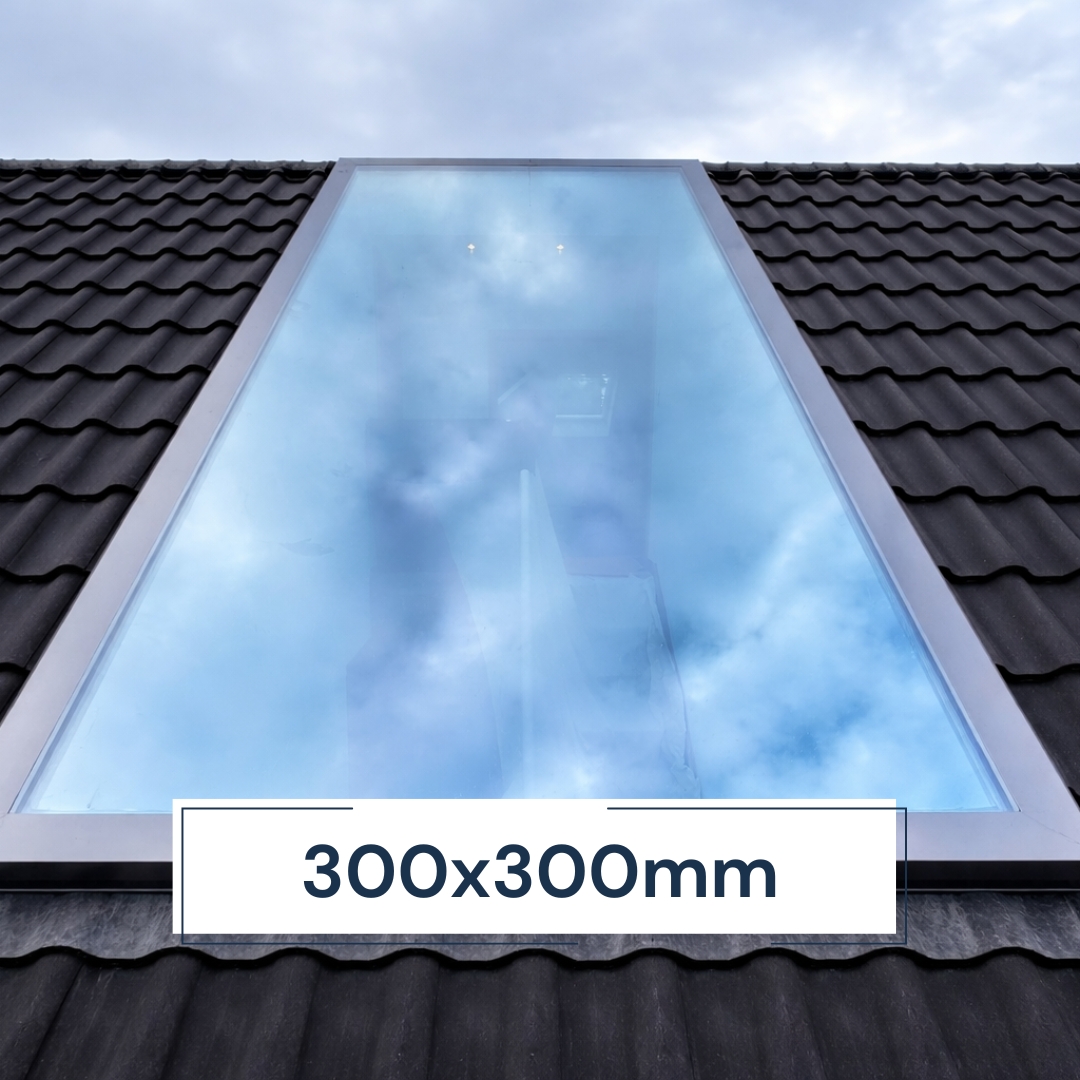

Pitched Roof Skylight / Rooflight 300 x 300 mm
Bring natural light and modern design into even the most compact spaces with the Rooflight Factory Pitched Roof Skylight. This small yet high-performance skylight is perfect for illuminating hallways, bathrooms, lofts, or extensions. Combining exceptional clarity with energy efficiency, it’s designed to brighten interiors while maintaining superior insulation and weather protection.
Minimalist Frameless Design
Expertly engineered by Rooflight Factory, this skylight features a sleek frameless design both internally and externally. Its edge-to-edge glass structure offers a clean, contemporary finish that enhances the architectural look of your roof while allowing maximum daylight to enter. Installation is simple and adaptable, with lead flashing cut on-site to suit various roof types, ensuring a watertight and professional fit.
Triple Glazed for Superior Efficiency
This non-opening skylight is triple glazed with 6 mm toughened, self-cleaning glass, providing exceptional strength, clarity, and low maintenance. With a U-value of 0.9 W/m²K, it offers outstanding thermal efficiency, keeping your home warm in winter and cool in summer. The self-cleaning coating works with natural rainwater to remove dirt and residue, keeping your view of the sky crystal clear.
- Glazing Type: Triple Glazed
- Internal Glass Size (Quoted): 300 x 300 mm
- External Glass Size: 500 x 500 mm
- Spacer Type: 15 mm Black Warm Edge
- Air Gap: 16 mm, 90% Argon Filled
- Top Glass Pane: 6 mm Planibel Clearlite / Thermally toughened glass BS EN 12150
- Middle Glass Pane: 6 mm iplus Thermally toughened glass with Low-E coating EN 12150
- Bottom Glass Pane: Stratobel Clearlite 44.2 / Laminated glass EN 14449
- U Value: 0.9 W/m²K
- G Value: 58%
- Net Weight: 6.45 kg
- Self-Cleaning: Yes
- UV Protected: Yes
- Tint: Clear
Safety and Compliance
The Rooflight Factory Pitched Roof Skylight meets all British Standards and Building Regulations for safety and performance. Each unit is CE marked, confirming compliance with EU product safety directives. Designed to be installed on roofs with a maximum pitch of 45 degrees, it ensures both durability and peace of mind for residential and commercial projects alike.
Installation Recommendations
- Internal Dimensions: The top glass pane includes a black border that extends the external dimensions by 200 mm in each direction.
- Creating the Opening: Allow an additional 10 mm internally from upstand to upstand for a precise fit. For example, a 600 x 900 mm skylight requires an opening of 610 x 910 mm.
- Upstand Construction: Construct the upstand using 2×1 or 2×2-inch timber for a stable, accurate fit.
- Foam Rope and Sealant: Use foam rope on top of the supporting baton to distribute the load evenly and reduce stress on the glass. Apply Dowsil 791 black sealant for a watertight finish—avoid acrylic sealants.
- Flashing: Ensure the entire skylight perimeter is properly flashed. Each roll (7.5 metres) covers up to 6 linear metres—sufficient for skylights up to 1000 x 2000 mm.
Perfect for Compact Spaces
The 300 x 300 mm skylight is ideal for smaller installations where space is limited but natural light is desired. Whether fitted in a bathroom, stairwell, or loft conversion, it provides a stylish and efficient way to introduce daylight while maintaining insulation and weather resistance.
Why Choose Rooflight Factory?
- Best Price Guarantee
- 20-Year Warranty
- Secure Payment Protection
- Self-Cleaning and UV-Protected Glass
- Free Delivery within London (M25)
- Safety Toughened and Laminated Glass Panels
- Made in the EU
- London-Based Stock for Fast Dispatch
- Quick and Easy Installation
- Step-by-Step Installation Guide Included
The Rooflight Factory Pitched Roof Skylight 300 x 300 mm delivers a perfect balance of contemporary style, energy efficiency, and build quality. Compact yet powerful, it’s the ideal choice for brightening smaller spaces with a clean, modern finish and lasting performance.
