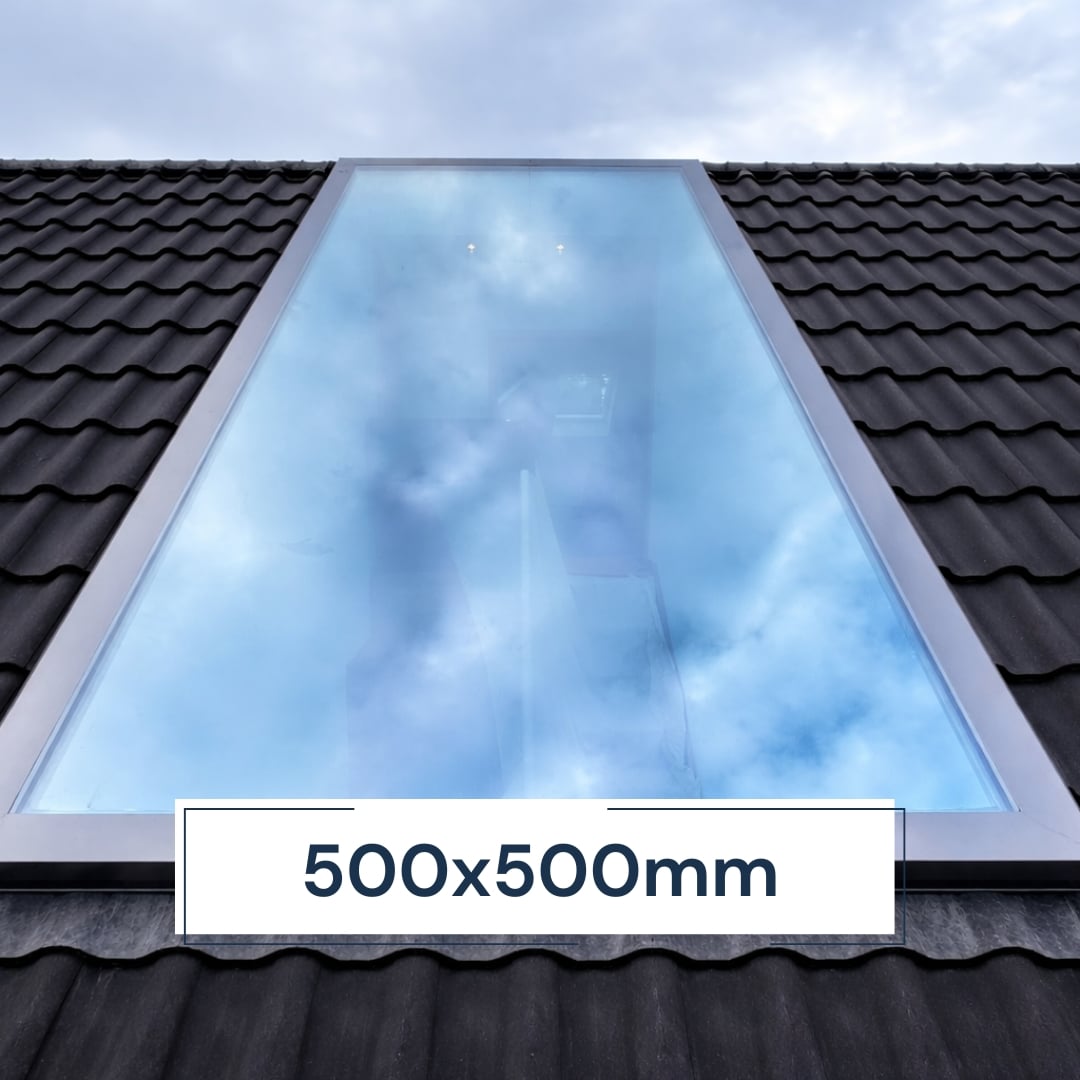

Pitched Roof Skylight / Rooflight 500 x 500 mm
Brighten up compact spaces with the Rooflight Factory Pitched Roof Skylight, designed to deliver exceptional natural light and contemporary elegance. Perfect for smaller areas or architectural accents, this frameless skylight enhances your home’s design while improving energy efficiency and comfort.
Frameless Design for a Sleek Finish
Expertly crafted to the highest standards, the Rooflight Factory skylight features a fully frameless design both inside and out, creating a clean, modern look that complements any interior. The seamless glazing invites more daylight into your home, transforming even the smallest rooms into bright, welcoming spaces. Installation is simple and secure, with lead flashing that can be cut on-site to fit any roof type.
Triple Glazing and Superior Performance
This premium, non-opening skylight is triple glazed with 6 mm toughened, self-cleaning glass, ensuring lasting durability and effortless maintenance. The advanced glazing system provides excellent insulation with a U-value of 0.9 W/m²K, helping to reduce heat loss and improve energy efficiency all year round. Its self-cleaning coating naturally breaks down dirt, maintaining a clear and polished appearance with minimal effort.
- Glazing Type: Triple Glazed
- Internal Glass Size (Quoted): 500 x 500 mm
- External Glass Size: 700 x 700 mm
- Spacer Type: 15 mm Black Warm Edge
- Air Gap: 16 mm, 90% Argon Filled
- Top Glass Pane: 6 mm Planibel Clearlite / Thermally toughened glass BS EN 12150
- Middle Glass Pane: 6 mm iplus Thermally toughened glass with Low-E coating EN 12150
- Bottom Glass Pane: Stratobel Clearlite 44.2 / Laminated glass EN 14449
- U Value: 0.9 W/m²K
- G Value: 58%
- Net Weight: 14.85 kg
- Self-Cleaning: Yes
- UV Protected: Yes
- Tint: Clear
Safety and Compliance
The Rooflight Factory Pitched Roof Skylight is manufactured in compliance with British Standards and Building Regulations. Each unit is CE marked, confirming its adherence to EU directives and safety standards. Designed for roof pitches up to 45 degrees, this skylight provides both peace of mind and reliable performance for domestic or commercial applications.

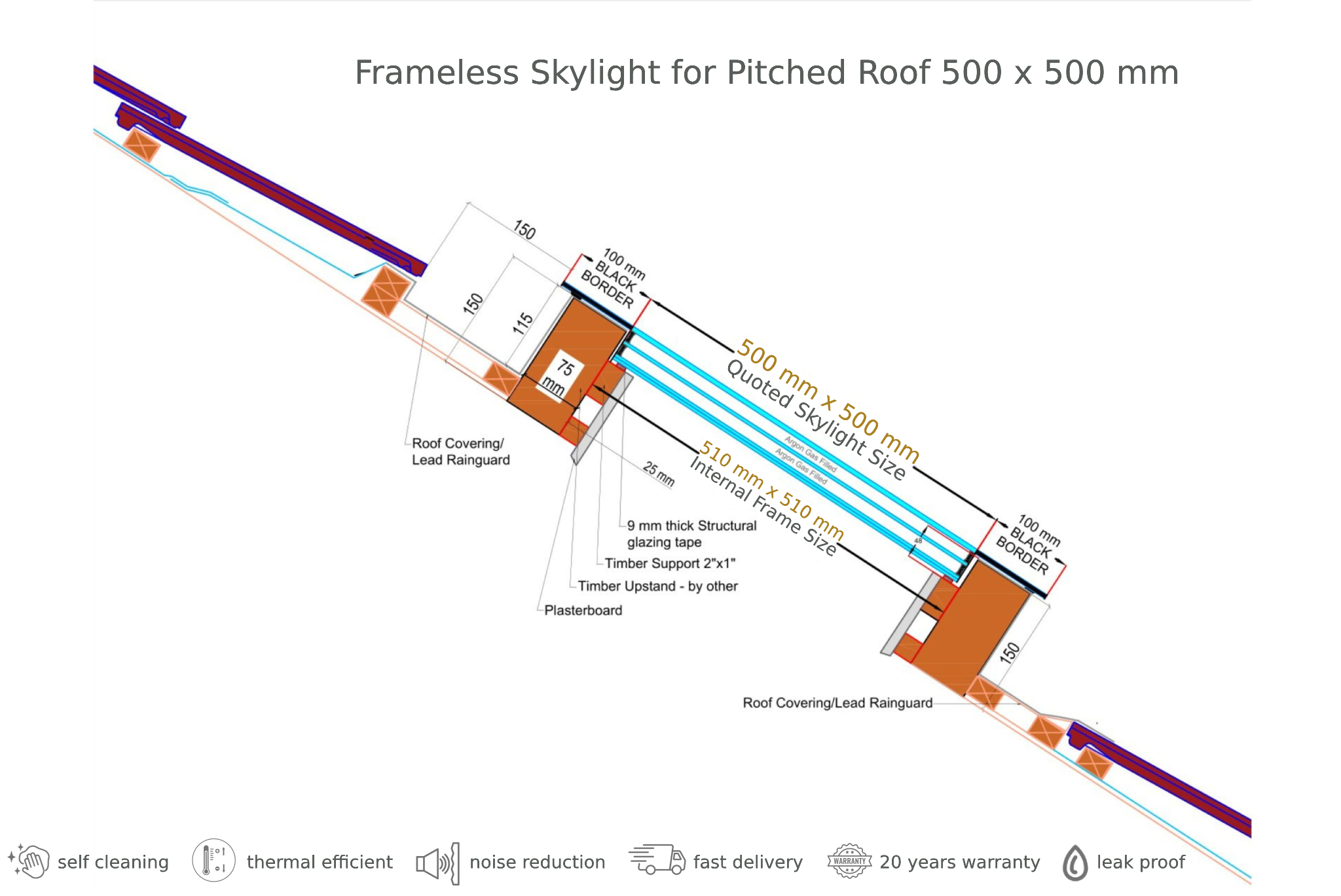

Installation Guidelines
- Internal Dimensions: The top glass pane includes a black border, increasing external dimensions by 200 mm in each direction.
- Opening Preparation: Allow an additional 10 mm internally (upstand to upstand) for a perfect fit. For instance, a 600 x 900 mm skylight requires a 610 x 910 mm opening.
- Upstand Construction: Build the upstand using 2×1 or 2×2-inch timber for a stable and secure frame.

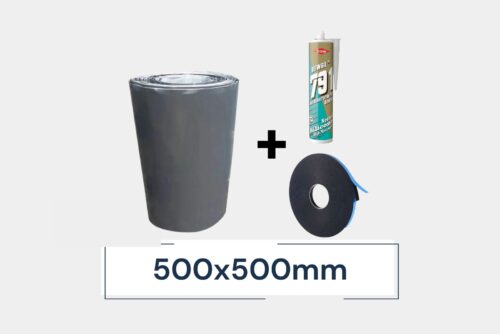

- Foam Rope and Sealant: Place foam rope along the supporting baton to balance weight and stress. Seal with Dowsil 791 black sealant for waterproofing—avoid using acrylic sealants.
- Flashing: Flashing must cover the full skylight perimeter. Rolls are supplied in 7.5-metre lengths; one roll typically covers skylights up to 1000 x 2000 mm (6 linear metres).
Versatility and Custom Options
Rooflight Factory offers a wide range of skylight sizes, including bespoke options to suit individual project requirements. Whether used for a home extension, loft conversion, or a smaller feature installation, this skylight combines elegance, function, and reliability in one refined product.
Why Choose Rooflight Factory?
- Best Price Guarantee
- 20-Year Warranty
- Secure Payment Protection
- Self-Cleaning and UV-Protected Glass
- Free Delivery within London (M25)
- Safety Toughened and Laminated Glass Panels
- Made in the EU
- London-Based Stock for Quick Dispatch
- Easy and Fast Installation
- Comprehensive Step-by-Step Installation Guide
Compact yet stylish, the Rooflight Factory Pitched Roof Skylight 500 x 500 mm offers a perfect blend of contemporary design, durability, and performance. Ideal for brightening smaller spaces, it brings a touch of sophistication and lasting quality to any home.
