Rooflight Factory Flat Roof Skylight – Triple Glazed for Modern Homes

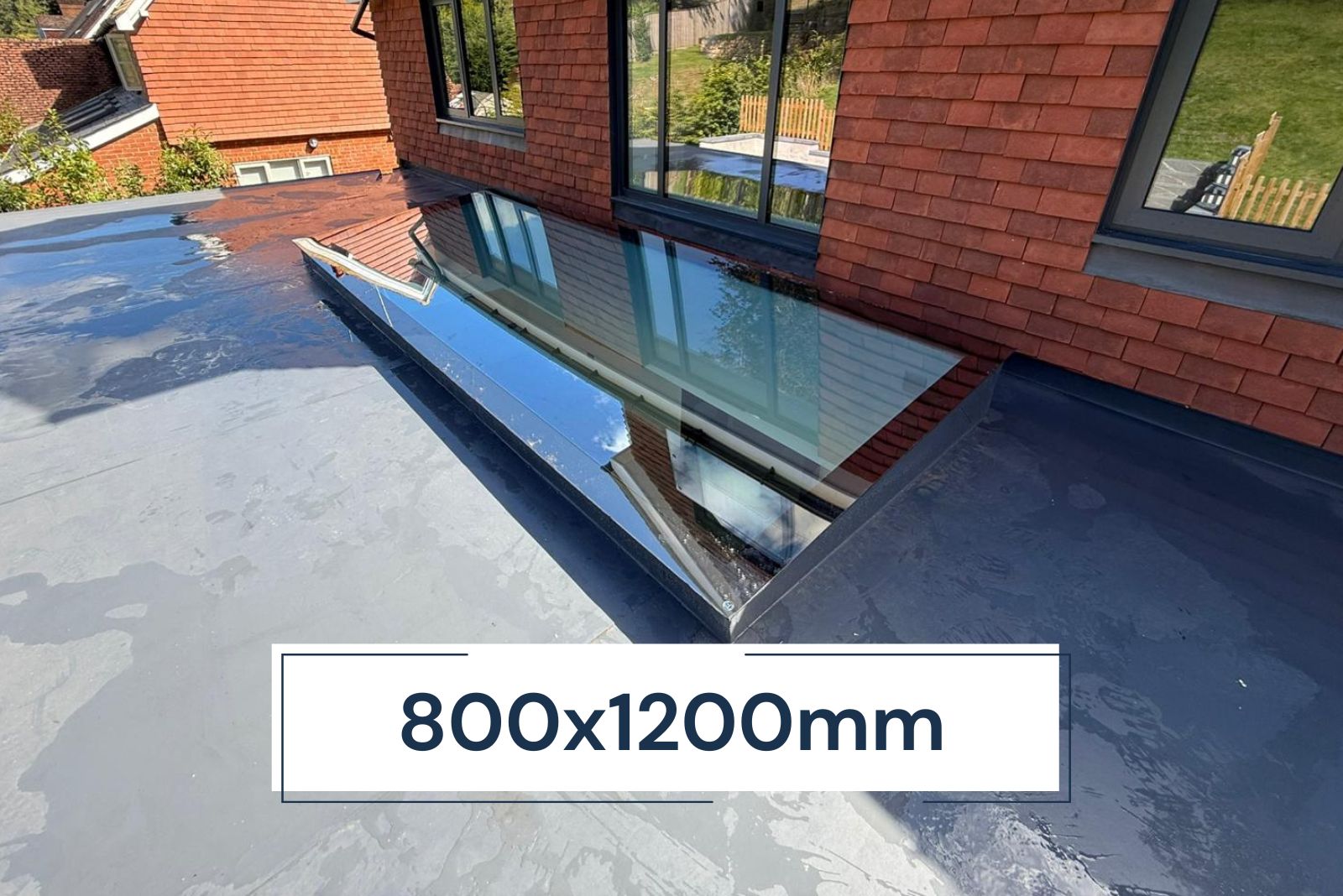

Illuminate your space with the Rooflight Factory Flat Roof Skylight – a sleek, energy-efficient glazing solution designed for durability, clarity, and style. Perfect for modern British homes and extensions, this skylight combines advanced glazing technology with elegant design to deliver long-lasting performance and exceptional natural light.
Engineered for Performance and Strength
Each Rooflight Factory skylight features a precision-crafted triple-glazed design, combining multiple glass layers to achieve superior insulation, structural integrity, and visual clarity:
- Top Glass Layer: 6 mm Planibel Clearlite / Thermally toughened glass BS EN 12150
- Middle Glass Layer: 6 mm iplus Thermally toughened glass with Low-E coating EN 12150
- Bottom Glass Layer: Stratobel Clearlite 44.2 / Laminated glass EN 14449
This configuration ensures optimal energy performance with a U-value of 0.9 W/m²K and a G-value of 58%, maintaining comfort in all seasons. The Low-E coating reduces heat loss during colder months while minimising solar gain in summer. The clear tint provides maximum daylight, enhancing brightness without compromising energy efficiency.
Technical Specifications
- Glazing Type: Triple Glazed
- Internal Glass Size: 800 x 1200 mm
- External Glass Size: 1000 x 1400 mm
- Top Glass Pane: 6 mm Planibel Clearlite / Thermally toughened glass BS EN 12150
- Middle Glass Pane: 6 mm iplus Thermally toughened glass with Low-E coating EN 12150
- Bottom Glass Pane: Stratobel Clearlite 44.2 / Laminated glass EN 14449
- Spacer Type: 15 mm Black Warm Edge
- Air Gap: 15 mm, 90% Argon Filled
- U Value: 0.9 W/m²K
- G Value: 58%
- Net Weight: 49.8 kg
- Self-Cleaning: Yes
- UV Protection: Yes
- Tint: Clear
Safety and Compliance
The Rooflight Factory Flat Roof Skylight is fully compliant with British Standards and Building Regulations, ensuring top-tier safety and quality. Each unit is CE marked and includes all necessary Safety Markings, confirming its conformity with EU product safety standards. Designed for versatility, this skylight can be installed at roof pitches of up to 45 degrees, making it suitable for a wide range of architectural applications.
Installation Guidance
For optimal installation and long-term performance, follow these recommendations:
- Dimensions: The top glass pane includes a black border, extending the external dimensions by 200 mm in each direction.
- Opening Preparation: Allow an additional 10 mm internally from upstand to upstand for proper fitting. For example, a 600 x 900 mm unit requires a 610 x 910 mm internal opening.
- Upstand Construction: Construct the upstand (timber frame) using 2×1 or 2×2 inch timbers for stability and support.
- Foam Rope & Sealant: Install foam rope on the internal baton to evenly distribute the glass weight. Use Dowsil 791 black silicone sealant to create a watertight perimeter. Avoid acrylic sealants, which are not compatible with this product.
Customisation Options
Rooflight Factory offers made-to-measure solutions to suit any project. Use our Custom Size Frameless Skylight Calculator or Custom Oversize Frameless Skylight Calculator to find the perfect fit for your property. Whether for compact home renovations or large-scale architectural projects, our bespoke skylights deliver precision and quality.
Why Choose Rooflight Factory?
- Best Price Guarantee
- 20-Year Warranty
- Secure Payment Protection
- Self-Cleaning & UV Protected Glass
- Clear Tint for Maximum Natural Light
- Free Delivery within London (M25)
- All Panels Safety Toughened and Laminated
- Made in the EU with London-Based Stock
- Quick and Easy Installation
- Step-by-Step Installation Guide Included
Rooflight Factory Flat Roof Skylights combine premium materials, expert craftsmanship, and modern design to create a bright, comfortable, and energy-efficient living environment. Built to last and engineered for performance, they are the ideal choice for stylish, sustainable homes.
